AN-EX3510
Build-to-Order - 10x 3.5" External Storage JBOD Tower

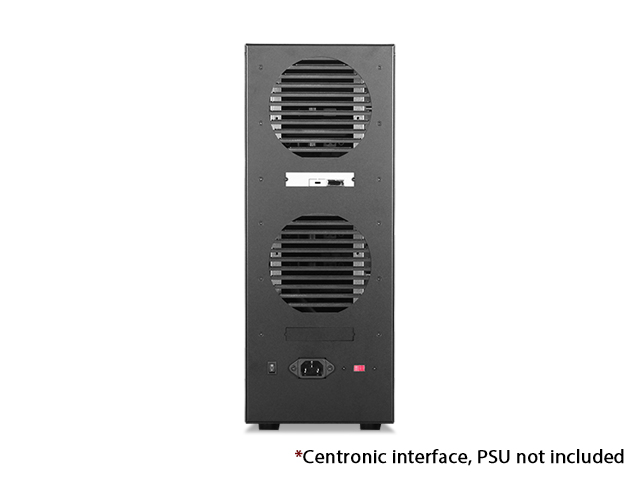

  • Two 120mm Cooling Fans for Ventilation

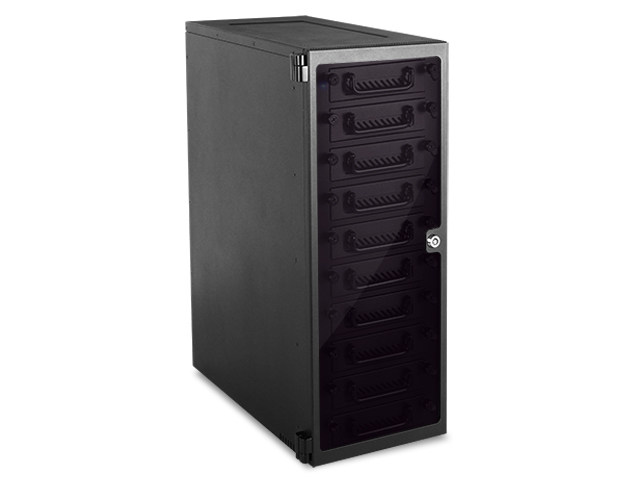

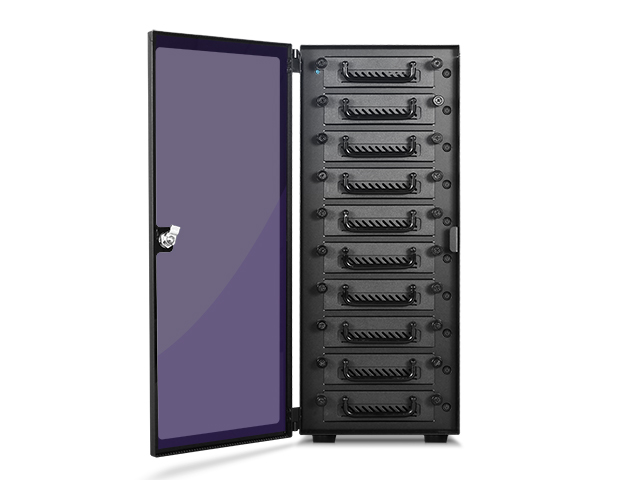

  • Semi-transparent Door with Key Lock Design
  • 10x 3.5" Hotswap Bays
  • Supports 3.5" SAS I/II & SATA I/II/III HDDs

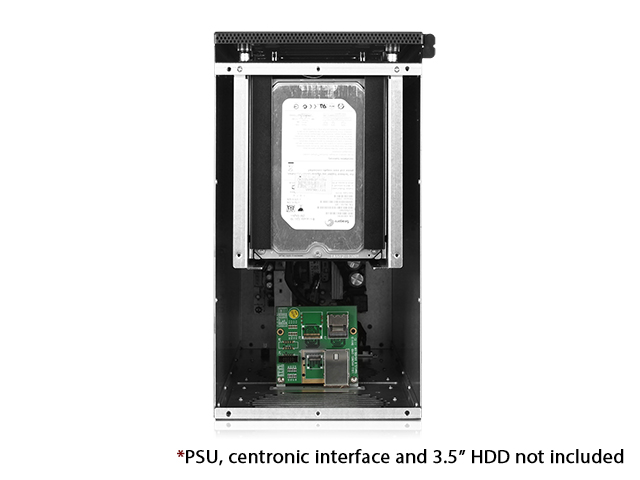

  • HDD Tray with Thumb Screw Design for Easy Swap
  • Supports 6.0Gb/s Hard Drives
  • 200W Open Frame Power Supply Included

Product Introduction
iSG external multi-bay JBOD tower series are designed specially for storage applications. With iStarUSA hotswap hard drive cage, it is able to easily max the hard drive capacity up to 10 bays for storing mass data. Quiet 120mm cooling fans enhance the ventilation inside. The external JBOD storage cases with solid construction are a cost-effective and flexible solution for your critical data storage.


Model NumberAN-EX3510
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 3.5": 10
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Expansion Slots2 (Centronics)
SecurityKey Lock
Material of Front BezelSteel
Material of Main ChassisSteel
Color of Main ChassisBlack
Cooling Fan2x120mm
Dimensions (WxHxD)6.89" x 16.67" x 14.19"
175.0 mm x 423.4 mm x 360.4 mm
