AN-EX355

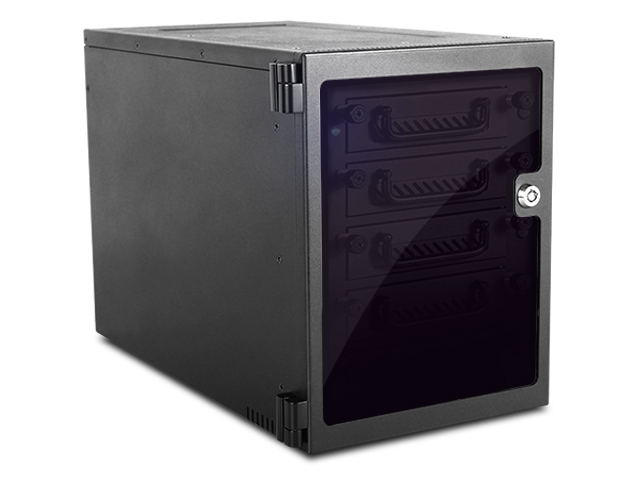

Build-to-Order - 5x 3.5" External Storage JBOD Tower

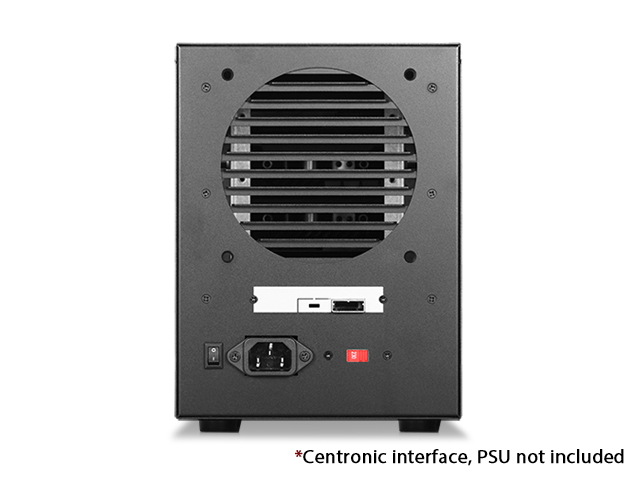

  • One 120mm Cooling Fan for Ventilation

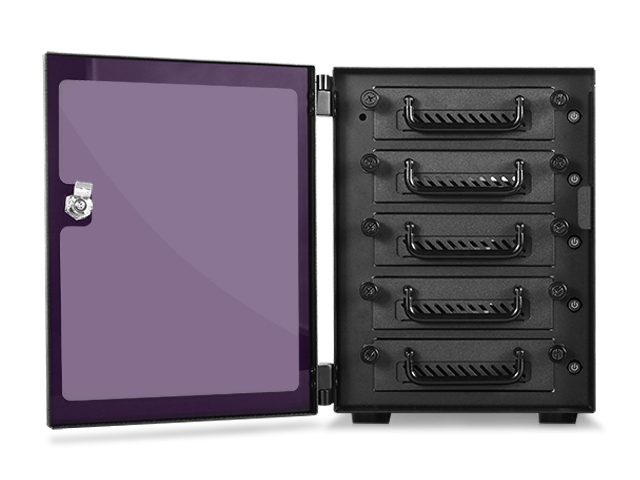

  • Semi-transparent Door with Key Lock Design

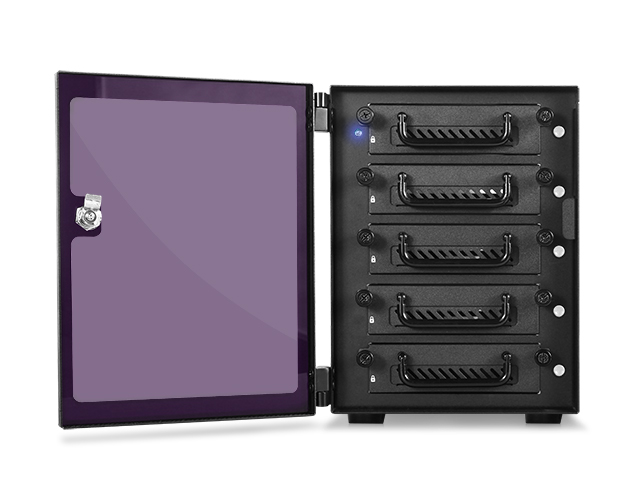

  • 5x 3.5" Hotswap Bays
  • Supports 3.5" SAS I/II & SATA I/II/III HDDs
  • HDD Tray with Thumb Screw Design for Easy Swap
  • Supports 6.0Gb/s Hard Drives

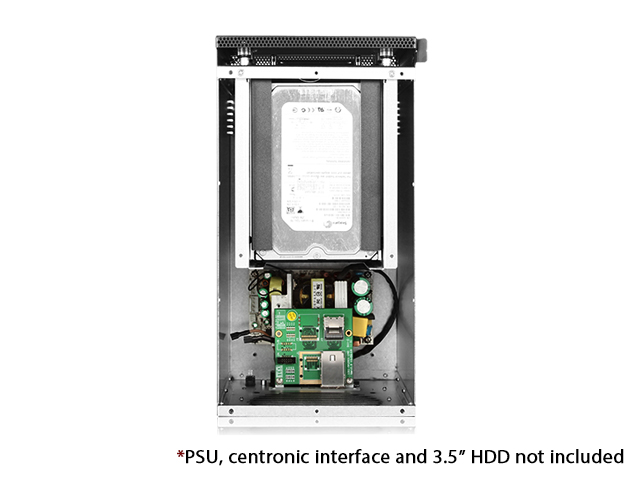

  • 150W Open Frame Power Supply Included



Product Introduction
iSG external multi-bay JBOD tower series are designed specially for storage applications. With iStarUSA hotswap hard drive cage, it is able to hold 5x 3.5" HDDs for storing mass data. Quiet 120mm cooling fan enhances the ventilation inside. The external JBOD storage cases with solid construction are a cost-effective and flexible solution for your critical data storage.


Model NumberAN-EX355
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 3.5": 5
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Expansion Slots1 (Centronics)
SecurityKey Lock
Material of Front BezelSteel
Material of Handlen/a
Material of Main ChassisSteel
Color of Front Bezeln/a
Color of Main ChassisBlack
Front Connectorn/a
Air Filtern/a
Motherboard Sizen/a
Cooling Fan1x120mm
Optional Fan:n/a
Dimensions (WxHxD)6.89" x 8.82" x 14.19"
175.0 mm x 224.0 mm x 360.4 mm
