D-135-3D11

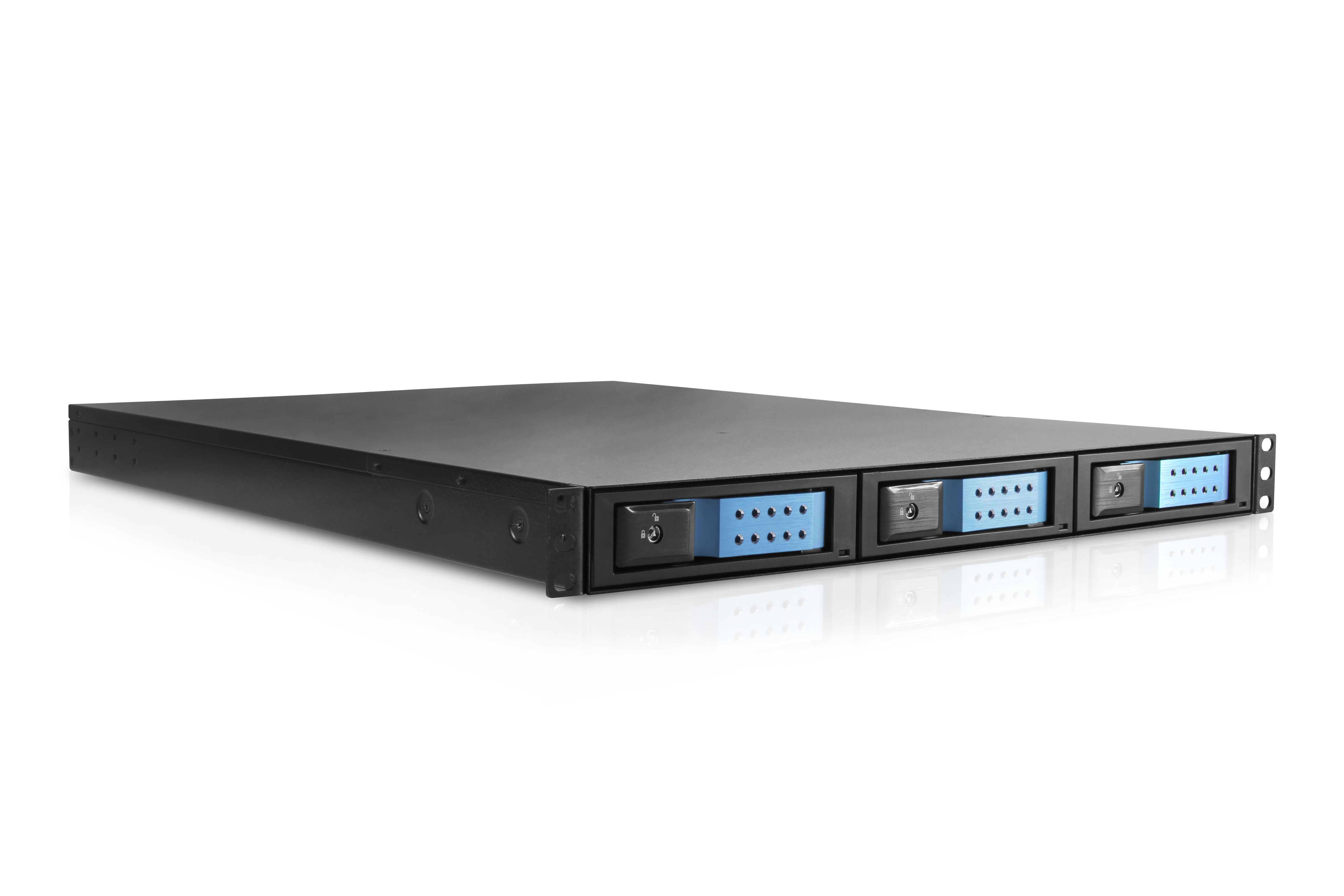

1U 3x 3.5" Bays Trayless Hot-Swap ATX Chassis
  • Advance Thermal Cooling Design Optimizes Airflow
  • Included 3 Cooling Fans
  • Support Micro ATX Motherboard
  • Power + HDD LED Indicator
  • Power on/ off Switch
  • Fully RoHS Compliance



Product Introduction
1U Tool-less hotswap rackmount not only has the stylish appearance, but the functionality and flexibility make A/V series a new breed of storage solution. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide 1U power supply to ensure total up time of mission critical storage applications.


Model NumberD-135-3D11
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 3
SwitchesPower on/off
Expansion Slots1
Securitykeylock
Material of Front BezelSteel
Material of HandleAluminum
Material of Main ChassisSteel
Color of Front BezelBlack
Motherboard SizeATX
Cooling Fan3x40mm
Dimensions (WxHxD)19.00" x 1.73" x 23.62"
482.6 mm x 43.9 mm x 599.9 mm
