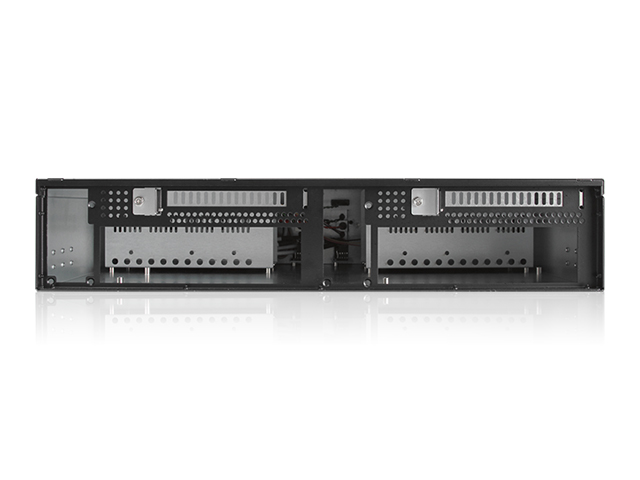

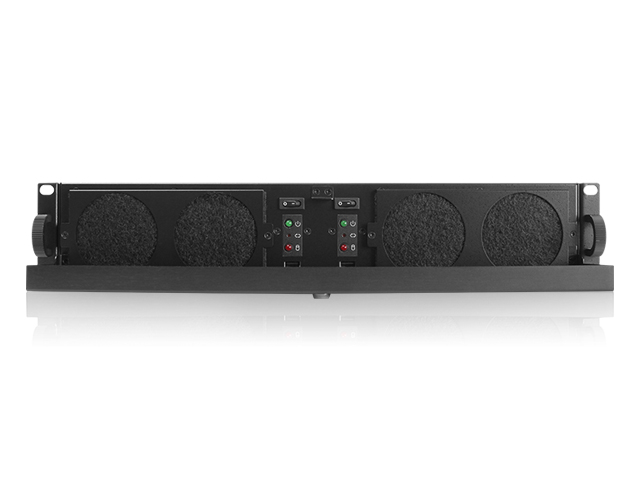

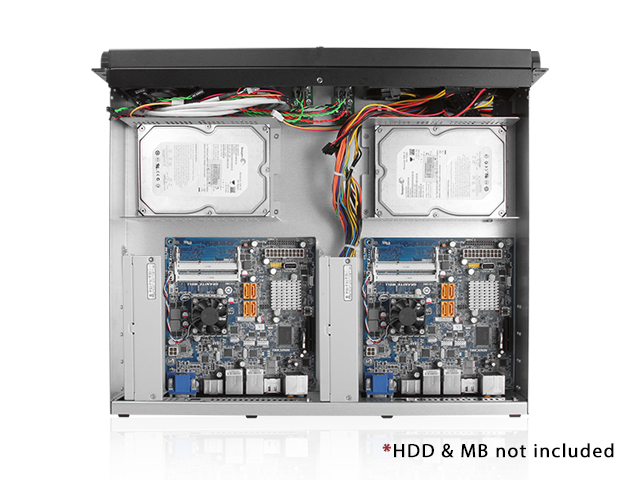

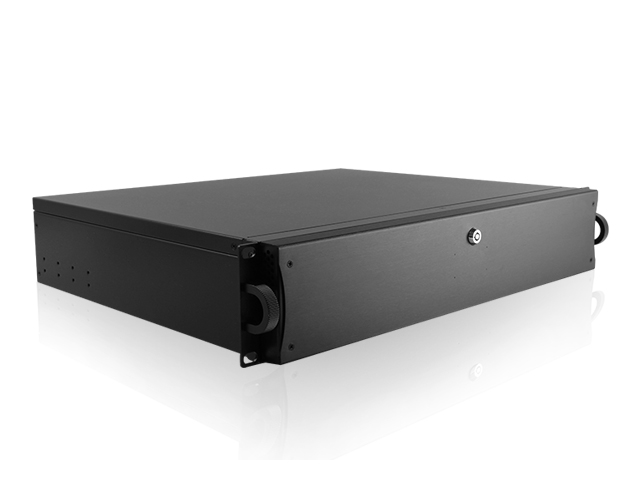

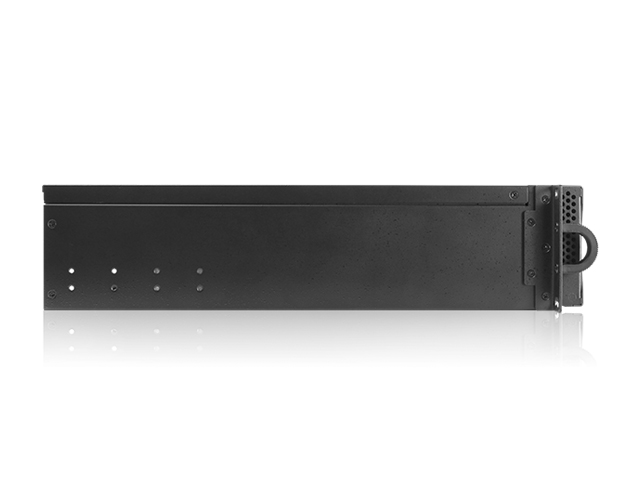

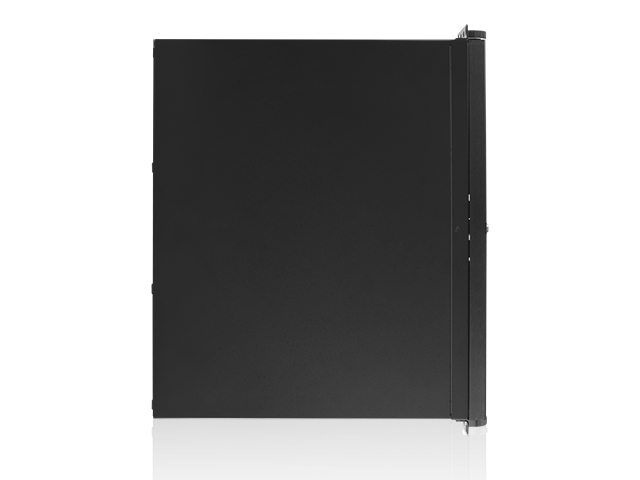

	D-218M2-ITX Build-to-Order - 2U Compact Dual Mini-ITX Rackmount Chassis Removable & Washable Air Filter Aluminum Door with keylock Support Dual Mini-ITX System Power and Alarm Reset Switch Power, LAN, and HDD LED 80mm x4 Cooling Fans Front Access USB2.0 x4
Product Introduction D-218M2-ITX is a reliable and stable 2U-high 15.5" depth industrial computer chassis. The chassis size supports dual mini-ITX motherboard and the backplane supports 2 PCI add-on cards. This chassis is equipped with four 80mm cooling fans for front intake air ventilation. In addition, the D-218M2-ITX supports two 1U flex power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-218M2-ITX
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drive (internal): 4
Indicators	Power, HDD, Fan, LAN
Switches	Power, Reset
Expansion Slots	1
Security	Key Lock
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Steel 1.0mm
Color of Front Bezel	Black
Color of Main Chassis	black
Front Connector	4x USB 2.0
Air Filter	Removal & Washable
Motherboard Size	6.7 x 6.7 (mini-ITX)
Cooling Fan	4x80mm
Dimensions (WxHxD)	19.00" x 3.50" x 15.50" 482.6 mm x 88.9 mm x 393.7 mm
Notes	- not compatible with sliding rails.

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	2.5" HDD SSD Mounting Bracket for 3.5" Bay

Compatible Motherboards

Model #

Motherboard Size

Company Name
