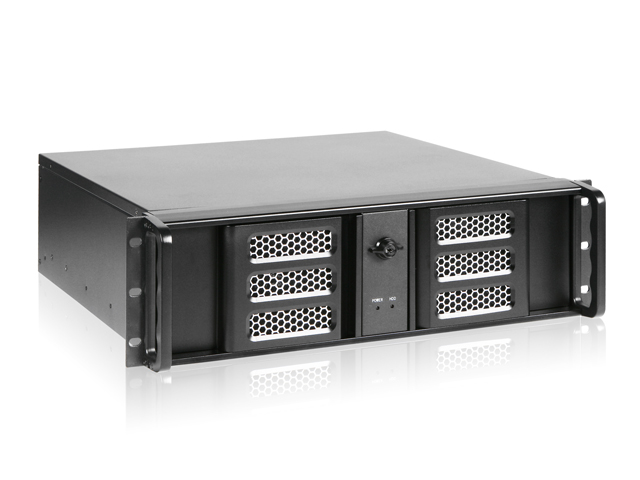

D-313ASE-MATX

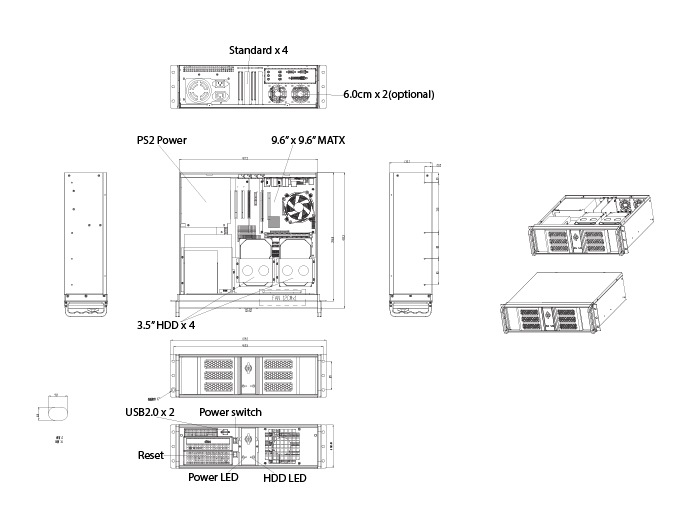

3U Compact Aluminum Rackmount microATX Chassis
  • Industrial Chassis with 15" in Depth
  • Front Access USB2.0
  • Power and HDD LED
  • Power and Reset Switch
  • Support ATX PS2 Power Supply
  • Support 4 x Full Height Add-on Cards
  • Aluminum Chassis



Product Introduction
D-313ASE-MATX is a reliable and stable 3U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplate supports 4 full height add-on cards. This chassis is only 15" in depth with aluminum material. In addition, D-313ASE-MATX supports a standard ATX PS2 power supply to meet regular server system applications.


Model NumberD-313ASE-MATX
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 4
5.25" Drives: 2
IndicatorsPower, HDD
SwitchesPower, Reset
Expansion Slots4
SecurityFront Bezel
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisAluminum
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0

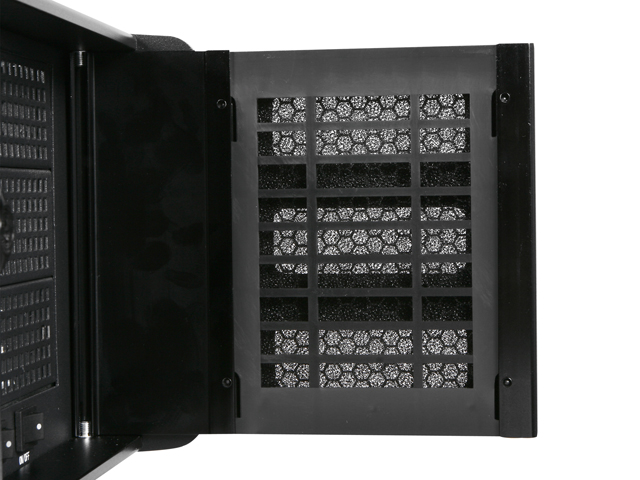

Air FilterBezel Filter
Motherboard Size9.6 x 9.6 (microATX)
Optional Fan:120mm x1, 60mm x2
Dimensions (WxHxD)19.00" x 5.25" x 17.55"
482.6 mm x 133.3 mm x 445.8 mm


FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-FDD353.5" to 5.25" Floppy Drive Mounting Bracket
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD2535FEnd of Life - 5.25" Drive Bay Cooling System for Hard Drive
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket

Compatible Motherboards

Model #Motherboard SizeCompany Name
