D-380HB

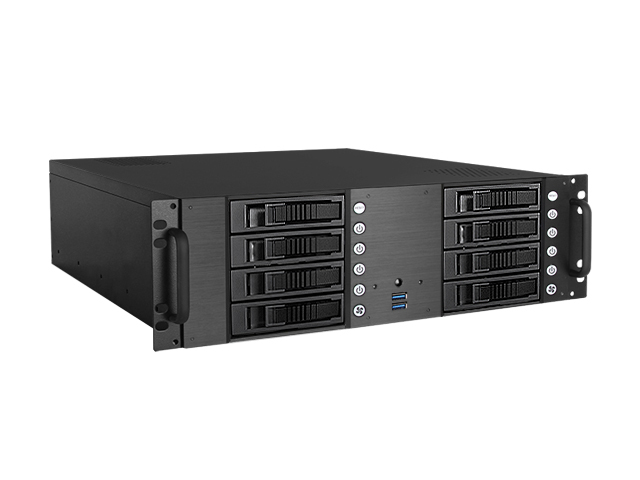

3U Compact 8x 3.5" Bay Hot-Swap microATX Chassis
  • 8x Hotswappable 3.5" Drive Bays
  • Rackmount or Desktop Convertible
  • Compatible with PS2 and PS3 Power Supply
  • PS2 mini Redundant PSU Compatible
  • Aluminum Sleek Front Panel
  • Front 2x USB 3.0 ports
  • Power & HDD Indicators in the Front



Product Introduction
The D-230HB-T, D-340HB-T, D-350HB-T, D-260HB, D-380HB, and D-3100HB series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 4TB per each bay, the hot-swap drive cage maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.


Model NumberD-380HB
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 1
Hotswap 3.5": 8
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Expansion Slots4
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisSGCC 0.8mm
Color of Main ChassisBlack
Front Connector2x USB 3.0
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan4x80mm
Optional Fan:80mm x1
Ordering Information
(Part Number)
Black HDD Handle:D-380HB
Blue HDD Handle:D-380HB-BLUE
Red HDD Handle:D-380HB-RED
Silver HDD Handle:D-380HB-SILVER
Dimensions (WxHxD)18.98" x 5.22" x 19.06"
482.1 mm x 132.6 mm x 484.1 mm
Notes- the first three ATX motherboard slots cannot be used.


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #Motherboard SizeCompany Name
