D-410-2DU

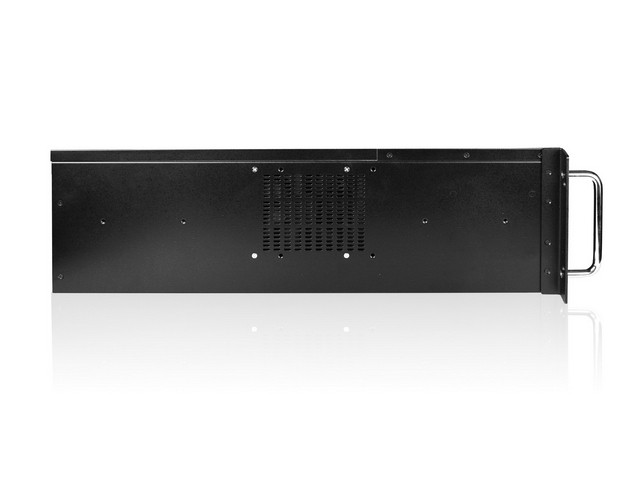

4U 8-bay Stylish Hotswap Trayless Slim ODD Storage Server Rackmount



Product Introduction

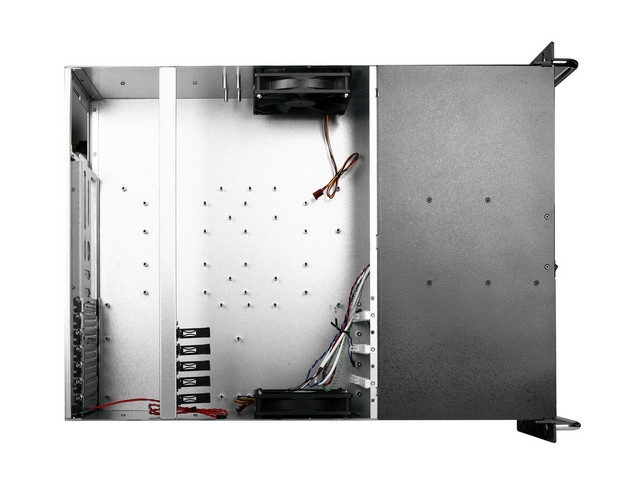

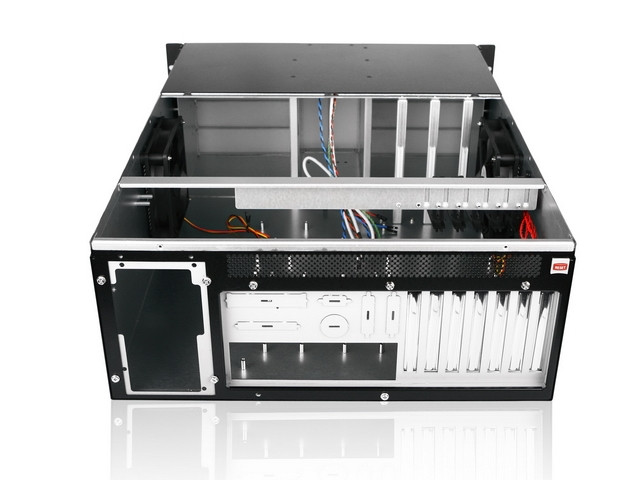

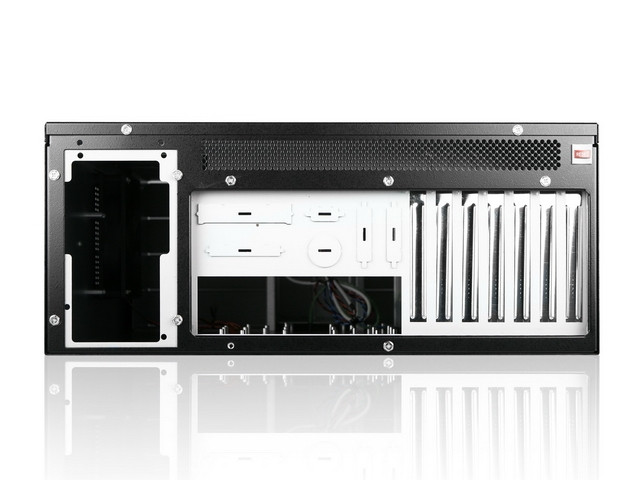

4U industrial rackmount chassis D-410-2DU combines with AN-D trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 8x3.5" & 2x2.5" storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage.D-410-2DU provides server or cluster maximum reliability and performance.


Model NumberD-410-2DU
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 2.5": 2
Hotswap 3.5": 8
Slim 5.25" Optical: 1
Hotswap HDD Type:3.5" SAS I/II, 3.5" SATA I/II/III, 2.5" SATA I/II/III
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2
Expansion Slots7
Material of Main ChassisZinc-Coated Steel
Color of Main ChassisBlack
Front Connector1x USB 2.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan2x120mm
Dimensions (WxHxD)19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm
