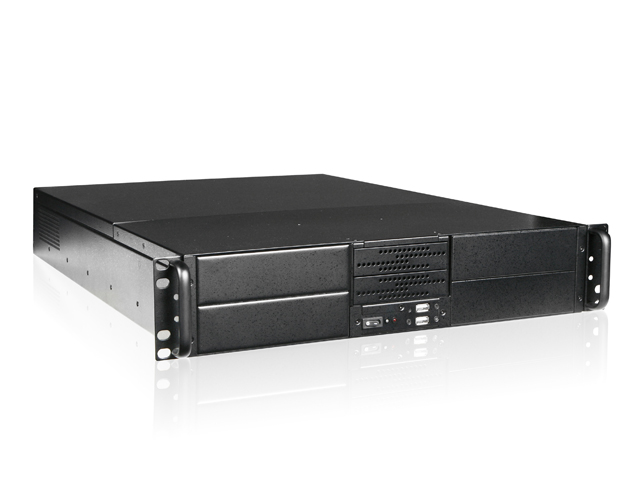

E-204V2-L
Build-to-Order - 2U E-ATX 4 x 5.25" Bays Rackmount Chassis
  • Power and Reset Switch
  • 1.2mm Steel Body Chassis

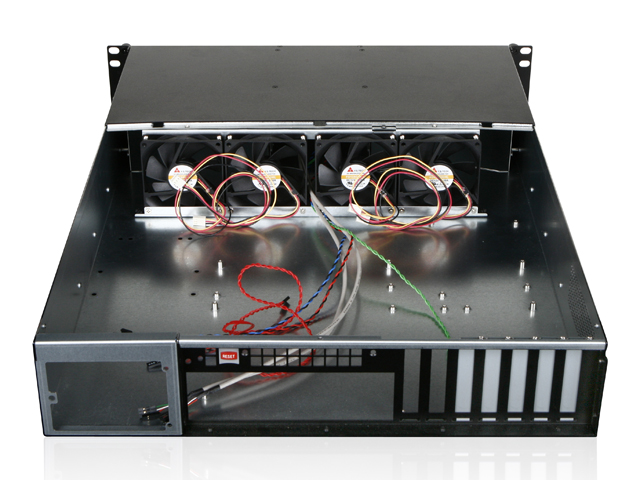

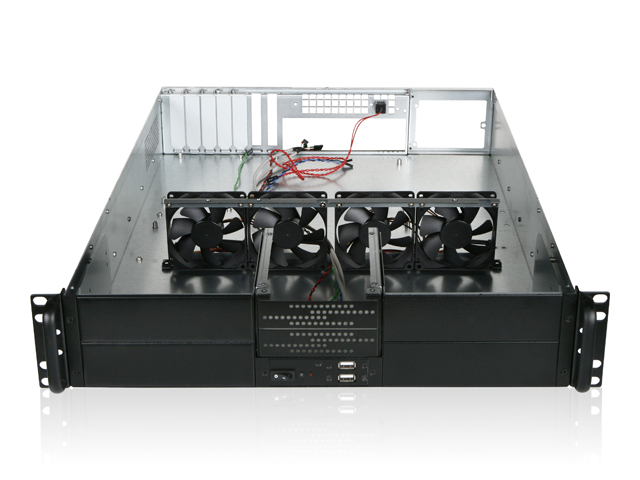

  • 80mm x4 Cooling Fans
  • Supports E-ATX Motherboard
  • Supports Front Access USB2.0 x2
  • 2 x 3.5" Bays & 4 x 5.25" Bay
  • Power and HDD LED Indicators

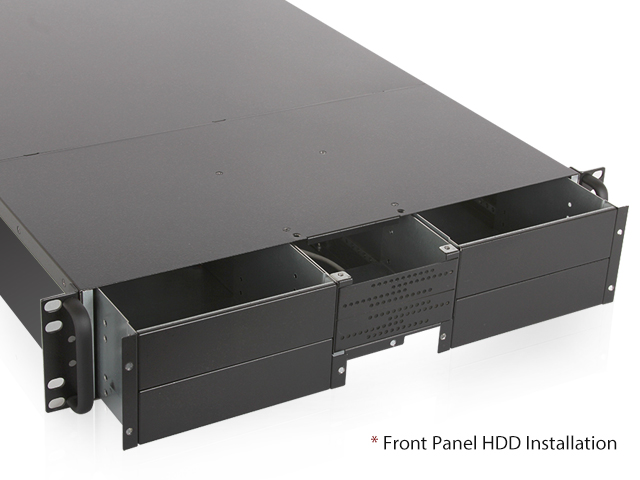

  • Supports HDD installation from front side



Product Introduction

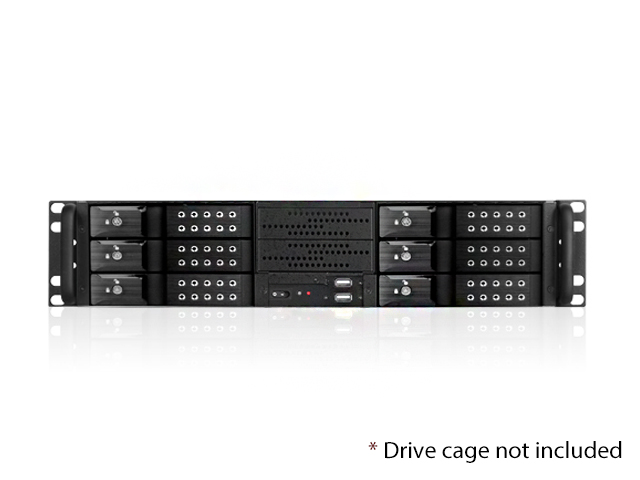

E-204V2-L rackmount chassis is designed with four 5.25" drive bays and two 3.5" drive bays. combined with BPU 2.5" to 5.25" hdd cages provides up to 24 x 2.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-204V2-L to provide the best air ventilation preventing critical equipment from heat damage. The chassis also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications.


Model NumberE-204V2-L
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 2
5.25" Drives: 4
IndicatorsPower, HDD
SwitchesPower, Reset
Expansion Slots7 (Low profile)
Material of HandleAluminum
Material of Main ChassisZinc-Coated Steel SECC 1.2mm
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan4x80mm
Dimensions (WxHxD)19.00" x 3.50" x 24.61"
482.6 mm x 88.9 mm x 625.1 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
RP-FDD353.5" to 5.25" Floppy Drive Mounting Bracket
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
