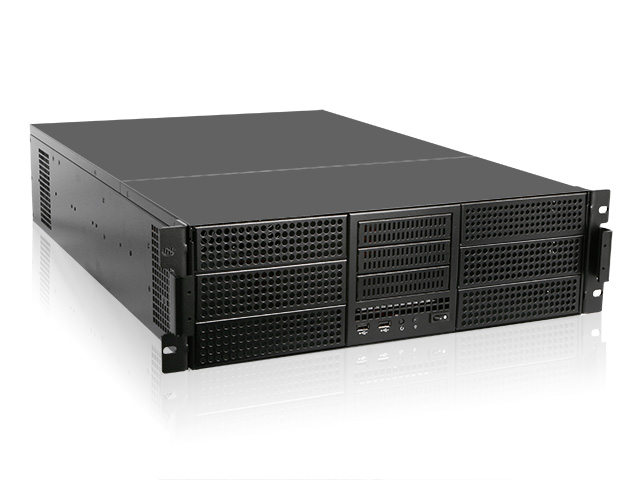

E-306L
3U E-ATX 6 x 5.25" Bays Rackmount Chassis
  • 80mm x4 and 60mm x2 Cooling Fans
  • 1.2mm Steel Body Chassis
  • Power and Alarm Reset Switch
  • Power LED Indicators
  • Supports Front Access USB3.0 x2
  • Supports E-ATX Motherboard

Product Introduction

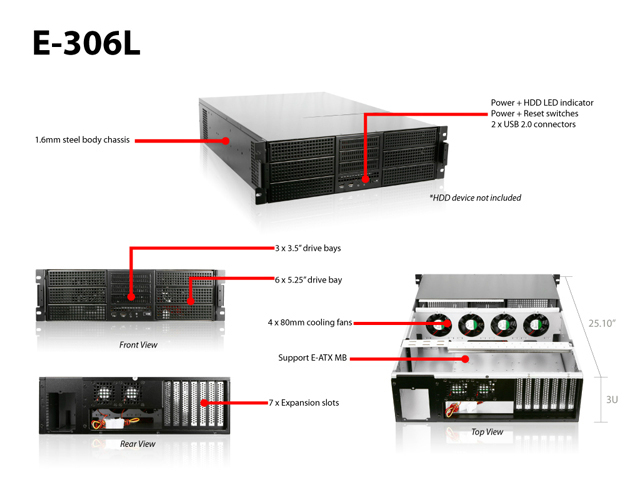

E-306L rackmount chassis is designed with six 5.25" drive bays and three 3.5" drive bays. combined with AN-HSIN (AN-B, AN-D, AN-G series) 3.5" to 5.25" hdd cages provides up to 13 x 3.5" hard drives or SSDs capability for any RAID configuration. Four 80mm fans is equipped with E-306L to provide the best air ventilation preventing critical equipment from heat damage. E-306L also supports E-ATX motherbaord and redundant power supply to provide maximum reliability and performance for server applications. YouTube video: iSG Industrial E-306L 3U 6x 5.25" bay + 3x 3.5" bay rackmount chassis - 4k video https://youtu.be/HJumY0RDZU8


Model NumberE-306L
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 3
5.25" Drives: 6
IndicatorsPower
SwitchesPower, Reset
Supported PSU Type2U redundant/ 3U redundant PSU

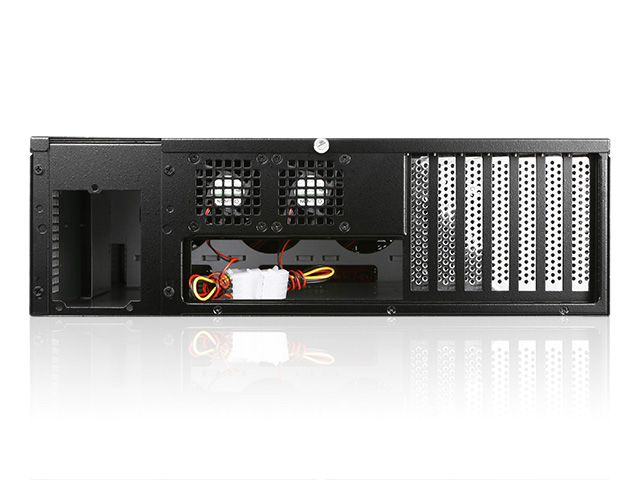

Expansion Slots7
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisZinc-Coated Steel SECC 1.2mm
Color of Main ChassisBlack
Front Connector2x USB 3.0
Motherboard Size12 x 13 (EATX, ATX, microATX)

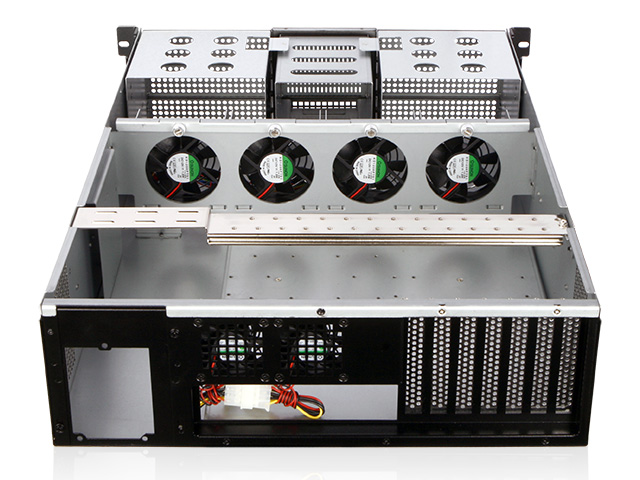

Cooling Fan2x60mm, 4x80mm
Dimensions (WxHxD)19.00" x 5.19" x 25.10"
482.6 mm x 131.8 mm x 637.5 mm


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P9X79 WSCEBASUS
Z8PE-D18EEBASUS
Z9PE-D16EEBASUS
Z9PR-D12EEBASUS
Z9PE-D16/2LEEBASUS
Z9PE-D8 WSEEBASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
EN2C602CEBASRock
EN2C602-4LCEBASRock
EN2C602/D12EEBASRock
EN2C602-4L/D12EEBASRock
EP2C602EEBASRock
EP2C602/D16EEBASRock
EP2C602-4LEEBASRock
EN2C602-4L/D16EEBASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S7002CEBTYAN
S7040CEBTYAN
S7010EEBTYAN
S7050EEBTYAN
S7052EEBTYAN
S7045EEBTYAN
S7053EEBTYAN
S7012EEBTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE
GA-7PCSLCEBGIGABYTE
GA-7PESH4EEBGIGABYTE
GA-7PESH2EEBGIGABYTE
GA-7PESH3EEBGIGABYTE
GA-7PESH1EEBGIGABYTE
GA-7PESE3EEBGIGABYTE
GA-7PESLEEBGIGABYTE
