E-4140
4U Rugged 14-slot Compact 17" Rackmount Chassis
  • 1.6mm steel body chassis
  • Front access USB2.0 x1
  • 120mm x1 cooling fan
  • Removable air filter

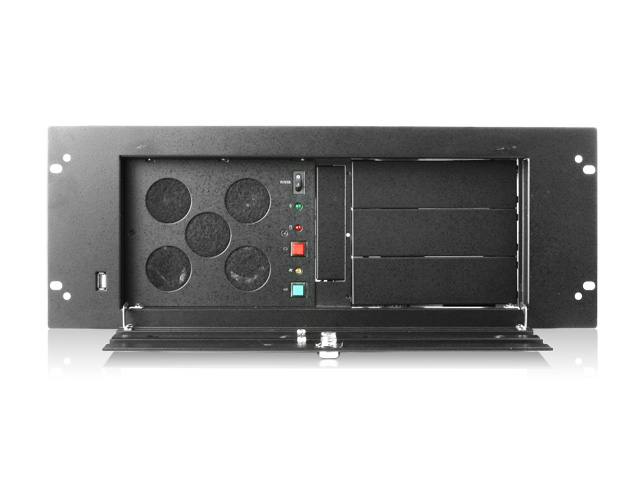

  • Spill-proof bezel with lock
  • Shock absorbing drive cage
  • 14 slot passive backplate
  • Fan and temperature monitor
  • Compact 17.8" depth



Product Introduction

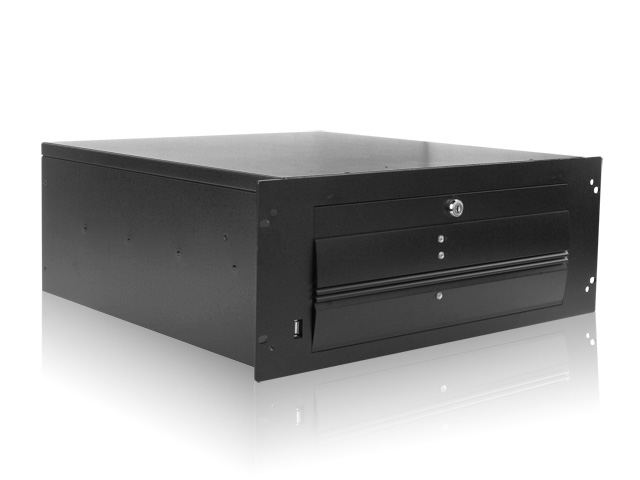

Introducing the E-4140 rugged rackmount chassis, ultra strong and compact for rugged environment and critical application. The E-4140 is designed to perform military operations or industrial applications that require spill proof and high impact strength enclosure. Exceptional designed shock absorbing drive cage, cooling ventilation system, and total depth of 17.8 is the most versatile and tough rackmount chassis on the market.


Model NumberE-4140
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 1
5.25" Drives: 3
IndicatorsLEDs for Power ON/OFF, HDD, Fan & Alarm
SwitchesPower ON/OFF, System & Alarm Reset
Expansion Slots14
SecurityFront Bezel
Material of Front Bezel1.6mm SECC Zinc-Coated Steel
Material of Handle1.6mm SECC Zinc-Coated Steel
Material of Main Chassis1.6mm SECC Zinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front ConnectorFront USB 2.0 x 1 Connector
Air FilterRemovable & Washable
Motherboard SizePassive backplane/ Single board
Cooling Fan1x120mm
Optional Fan:1x80mm Blower

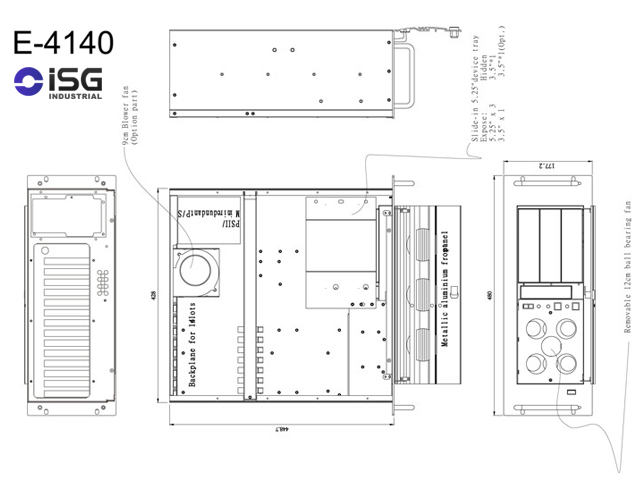

Dimensions (WxHxD)19.00" x 7.00" x 17.80"
482.6 mm x 177.8 mm x 452.1 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
DD-E4000-BLFANBuild-to-Order - 80mm Blower Fan
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
