E3M4R

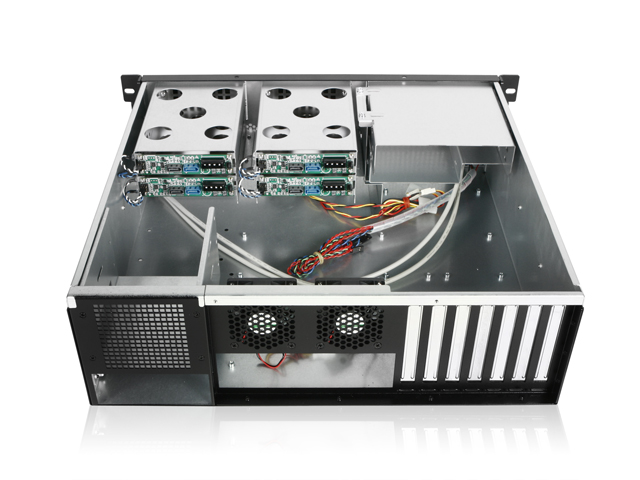

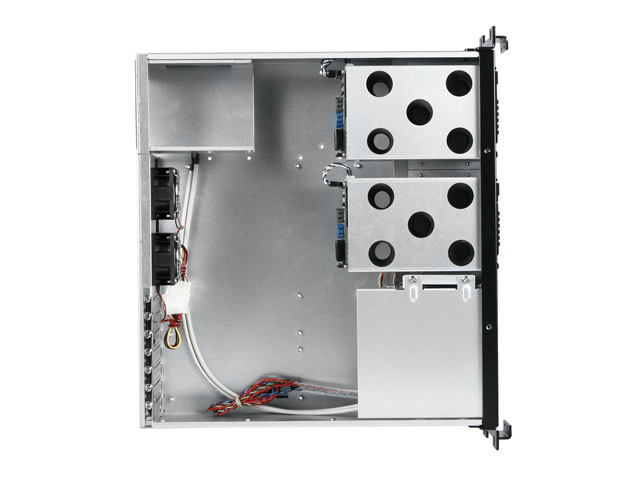

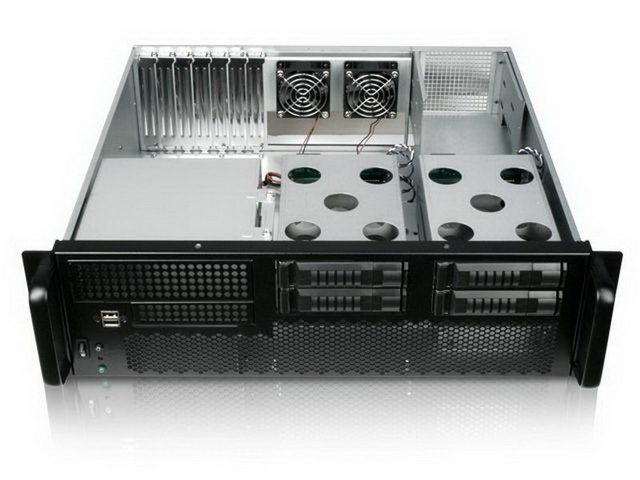

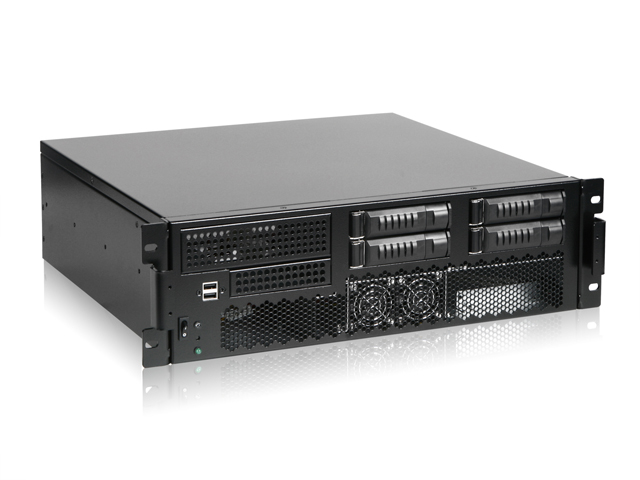

3U 4-Bay Server Rackmount Chassis
  • Support Redundant Power Supply
  • Ultra Compact 15" Body Depth
  • Fiber Optical Drive Tray Status Indicator
  • Support ATX Motherboard
  • Front Access USB Connector
  • Power & HDD LED Indicator and Power & Reset Switch
  • Fully RoHS Compliance

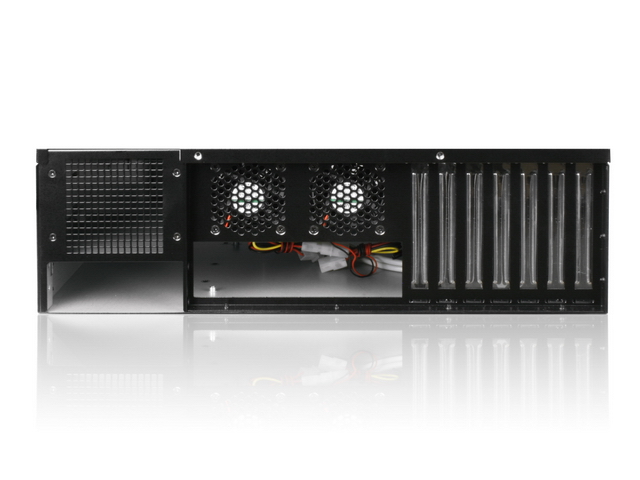

  • 2x 50mm cooling fans in the front and 2x 60mm in the rear to provide excellent airflow
  • Support 6.0Gb/s SAS/SATA Hard Drives

Product Introduction
The E3M4R storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E3M4R a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology to support both latest SAS and SATA hard drives,and also provide redundant power supply to ensure total up time of mission critical server applications.


Model NumberE3M4R
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 3
Hotswap 3.5": 4
5.25" Drives: 1
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower + HDD LED
SwitchesPower On/Off, Reset
Expansion Slots7
Material of HandleAluminum
Material of Main ChassisHeavy-duty SGCC Cold-rolled Steel
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan2x50mm, 2x60mm
Dimensions (WxHxD)19.00" x 5.25" x 16.00"
482.6 mm x 133.3 mm x 406.4 mm


Download
There are no downloadable media for this product.
FAQ

QSystem does not Detected HD
APlease make sure Connected the SATA Cable to the Blue color port.
QWhat are the Blue SATA port and Black SATA port used for?
ABlue port is primary port for SAS and SATA HDD. Black port is secondary port for SAS HDD
Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
CAGE-SA2SABuild-to-Order - Internal SATA to internal SATA Cable
CAGE-4SA2MSBuild-to-Order - 4 SATA to Internal miniSAS Cable

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE
