EA-4M24EXP-JB

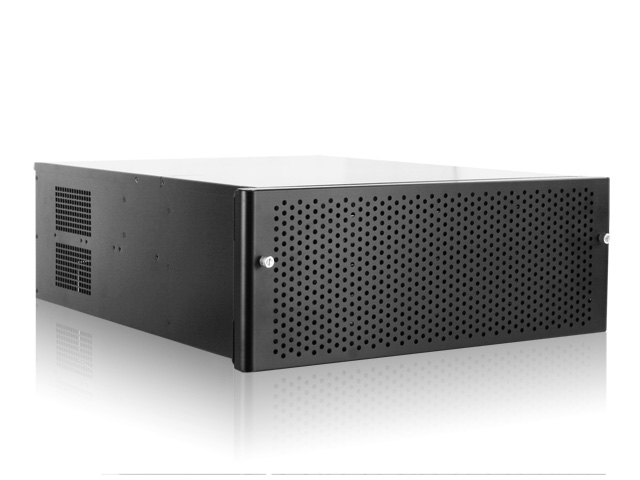

4U 24-Bay SAS Expander Storage JBOD Rackmount Chassis

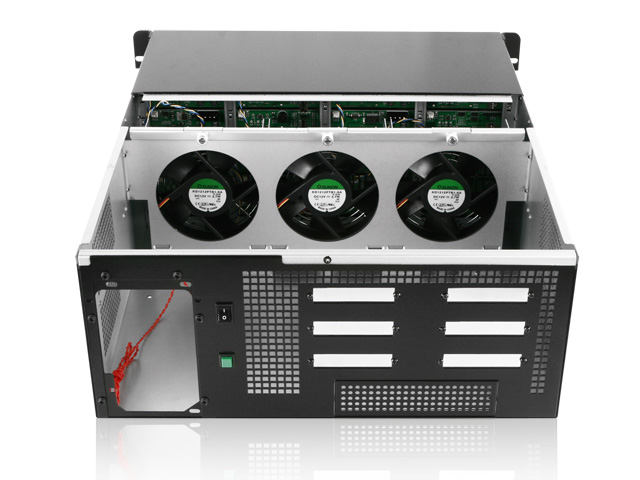

  • Advance Thermal Cooling Design with 3 x 120mm Cooling Fans
  • Support 5.25" Size SAS Expander
  • miniSAS (SFF-8087) HDD Backplane
  • HDD LED Indicator
  • Alarm Reset Switch
  • Fully RoHS Compliance
  • Support 6.0Gb/s SAS/SATA Hard Drives



Product Introduction

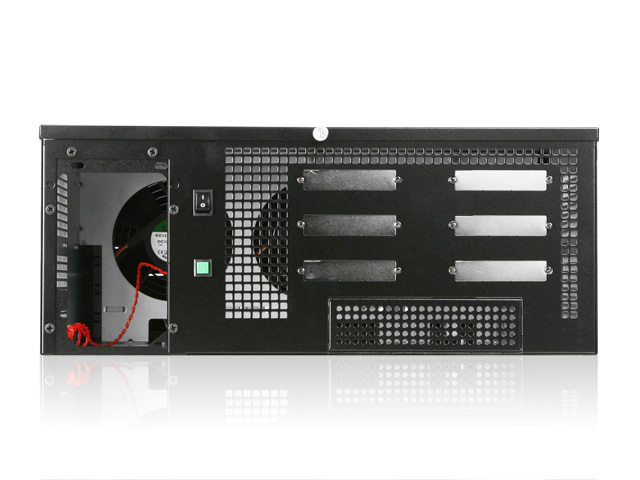

The EA storage series rackmount not only has the stylish appearance, but the functionality and flexibility make EA series a new breed of disk array. The storage rack offers similar performance and capability at much lower cost per GB storage. In addition, the storage chassis can also be easily reconfigured, modified or upgraded at any time to meet your new application without investing into new storage devices. With one additional 5.25?? bay in the rear, EA-4M24EXP-JB is able to equip a 5.25?? SAS expander to increase your storage capacity using daisy chain. The storage rack is an ideal platform for creating a custom storage solution with multi-terabytes capability for video storage or editing, data archiving, uninterruptible storage, storage farm or any application that requires high performance and high storage capacity. We also provide redundant power supply to ensure total up time of mission critical server applications.


Model NumberEA-4M24EXP-JB
RoHS Compliance VersionYes

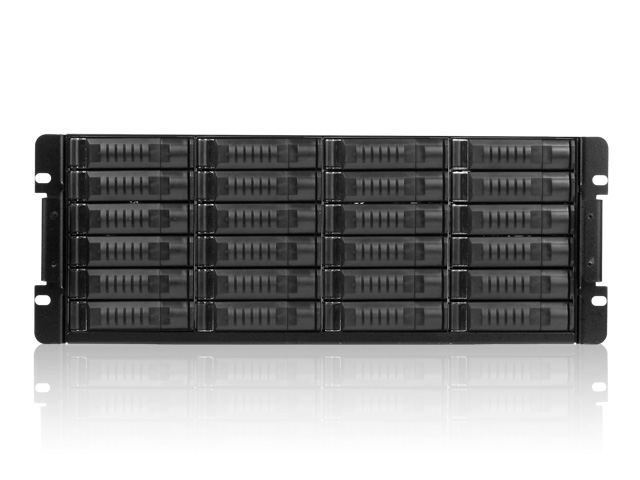

Standard Drive Bays Hotswap 3.5": 24
5.25" Drives: 1 (for SAS Expander)
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsHDD
SwitchesPower On/Off, Mute
Expansion Slots6
Material of Front BezelTexture-Coated Aluminum
Material of HandleAluminum
Material of Main ChassisHeavy-Duty Cold-Roll Steel with Zinc-Plated Bright Chromate

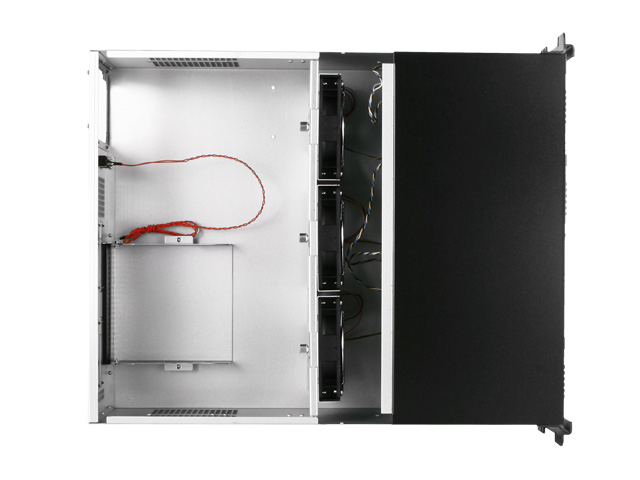

Cooling Fan3x120mm
Dimensions (WxHxD)19.00" x 7.00" x 22.50"
482.6 mm x 177.8 mm x 571.5 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
CAGE-AAMMM1Build-to-Order - External mini SAS to External mini SAS Cable
CAGE-AAMMMI-HBuild-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable
CAGE-AAMSM1External Multilane to External mini SAS Cable
ZAGE-D-8788-DUDual miniSAS Device Adapter
ZAGE-D-8788-SISingle miniSAS Device Adapter
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #Motherboard SizeCompany Name
