EB-2001-ITX
Build-to-Order - 2.5" Bay Industrial Embedded Chassis

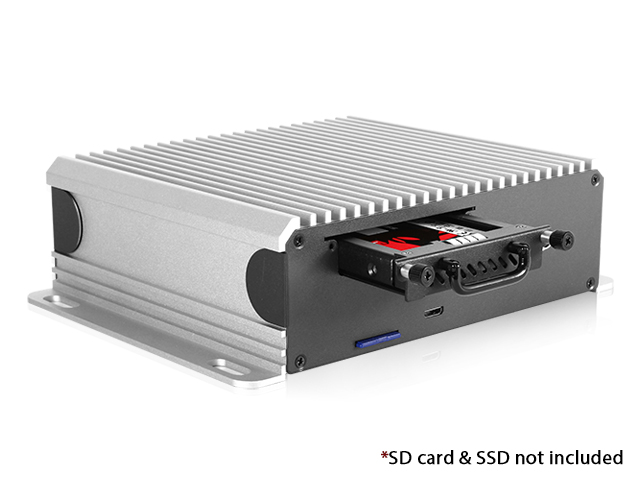

  • 2.5" Hotswap Bay
  • Fanless Aluminum Chassis Design
  • Available in Custom Color
  • Support mini-ITX Motherboard
  • Optional Wall-mount Kit Available
  • High Resolution Display Interface
  • Fanless Design - good for CPU power consumption under 50W*



Product Introduction



Model NumberEB-2001-ITX
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 2.5": 1
IndicatorsPower, HDD
SwitchesPower
Material of Front BezelSECC 1.0mm
Material of Main ChassisAluminum
Color of Front BezelSilver
Motherboard Size6.7 x 6.7 (mini-ITX)
Dimensions (WxHxD)8.00" x 2.70" x 6.90"
203.2 mm x 68.6 mm x 175.3 mm
Notesplease contact sales department for an OEM design with cooling fan(s) if the CPU power consumption is more than 50W to 70W


FAQ

QCPU Power Requirement Reference.
APlease refer to the PDF file.


Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
