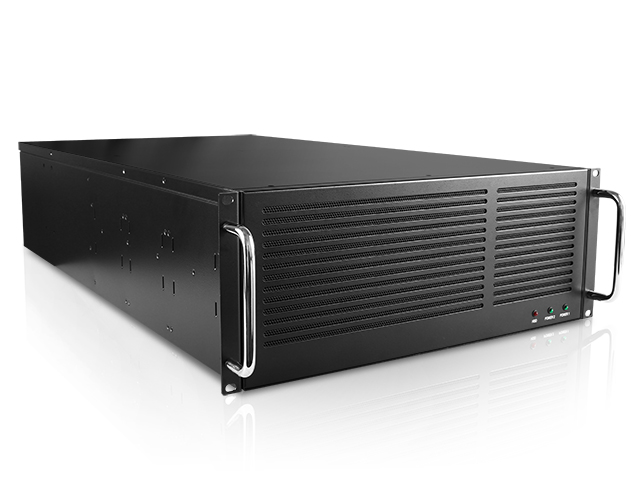

EB-415-PM
4U 15-Bay Port Multiplier Storage Server Rackmount Chassis

Product Introduction
The EB-415-PM storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make EB-415-PM a new breed of storage server. As Port Multiplier technology has become a more cost effective solution, we has taken a step forward to prepare the migration of new technology and provide up to 15 HDD drive bays, and also provide dual redundant power supply to ensure total up time of mission critical server applications.


Model NumberEB-415-PM
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 16
IndicatorsPower on/off,HDD
SwitchesPower on/off
Expansion Slots7
Material of Front BezelSteel
Material of HandleSteel
Material of Main ChassisSteel
Color of Front BezelBlack
Air Filteryes
Motherboard SizeEATX,ATX,Micro ATX
Cooling Fan6x120mm
Dimensions (WxHxD)19.00" x 6.98" x 22.26"
482.6 mm x 177.3 mm x 565.4 mm
