EX1M4

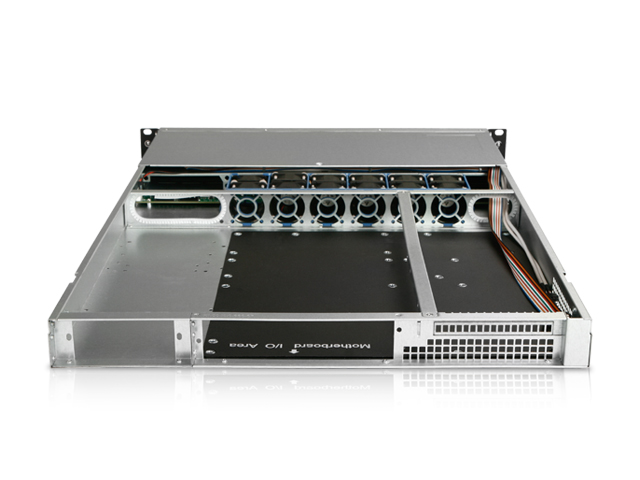

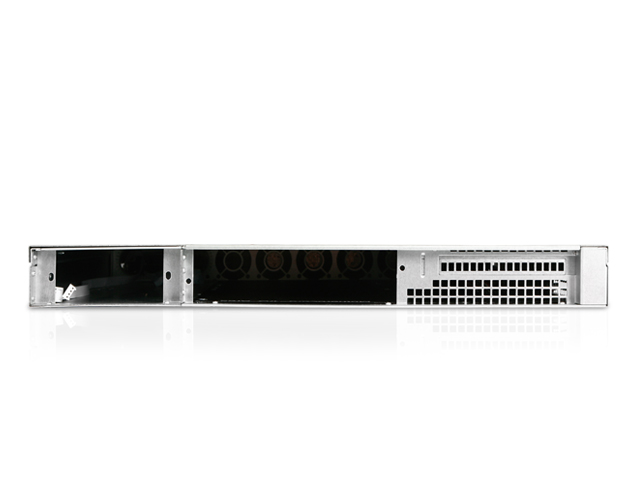

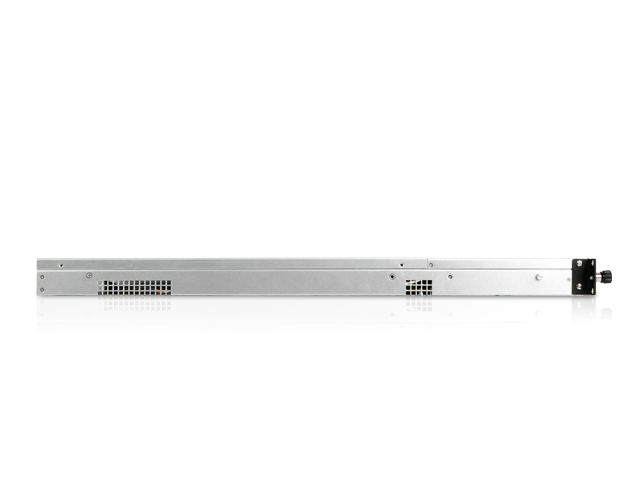

1U 4-Bay Storage Server Rackmount Chassis
  • Fiber Optical Drive Tray Status Indicator
  • 5 Cooling Fans with Status Monitor
  • Supports EATX Motherboard
  • Discrete SATA Backplane
  • Front Access USB Connector
  • Power + Fan Failure + HDD + LAN LED Indicators
  • Fully RoHS Compliant
  • Supports both SAS and SATA Hard Drives
  • Sliding Rails Included

Product Introduction
The EX storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make EX series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, the EX series hard drive backplane supports both SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.


Model NumberEX1M4
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 4
Slim 5.25" Optical: 1
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD, Fan, LAN
SwitchesPower, Reset, Mute
Expansion Slots1
Material of Main ChassisHeavy-duty SGCC
Color of Main ChassisSilver
Front Connector2x USB 2.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan5x40mm
Ordering Information
(Part Number)		Black
Dimensions (WxHxD)19.00" x 1.75" x 25.98"
482.6 mm x 44.4 mm x 659.9 mm
Notes- standard I/O shield will NOT fit any 1U chassis. - for PCI riser, Please contact sales reps. for more information. - for PCIe x16 riser, Please contact sales reps. for more information.
