EX2M12

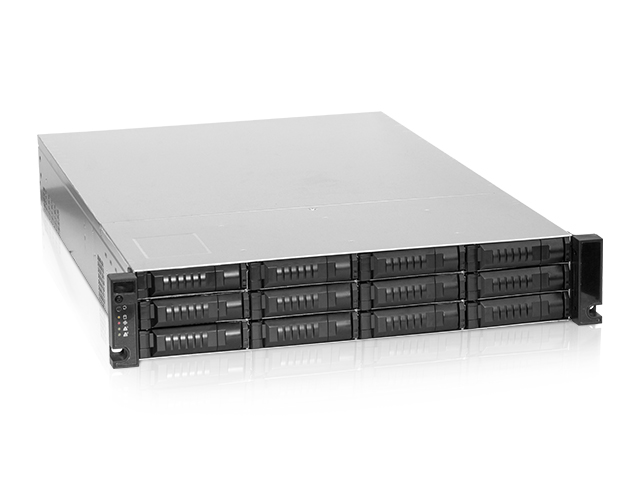

Build-to-Order - 2U 12-Bay Storage Server Rackmount Chassis
  • Fiber Optical Drive Tray Status Indicator
  • Power + LAN + HDD LED Indicator
  • miniSAS (SFF-8087) HDD Backplane with SGPIO
  • Supports EATX Motherboard
  • Supports Both SAS/SATA Hard Drives
  • 3x 80mm Hotswappable Cooling Fans
  • Fully RoHS Compliant



Product Introduction
The EX storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.


Model NumberEX2M12
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 3.5": 12
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD, LAN
SwitchesPower, Reset
Supported PSU Type2U single/ 2U redundant PSU
Expansion Slots7 (Low profile)
Material of HandleAluminum
Material of Main ChassisHeavy-duty SGCC
Color of Front BezelBlack
Color of Main ChassisSilver
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan3x80mm
Optional Fan:1x 80mm
Ordering Information
(Part Number)
Black
Dimensions (WxHxD)19.00" x 3.50" x 27.10"
482.6 mm x 88.9 mm x 688.3 mm
Notes- a controller with at least three SFF-8087 or SFF-8643 connectors is required - expander backplane version, model no.: EX2M12-EXP
