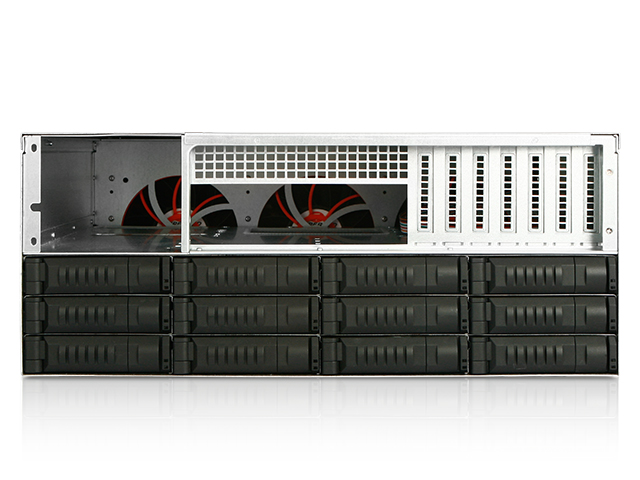

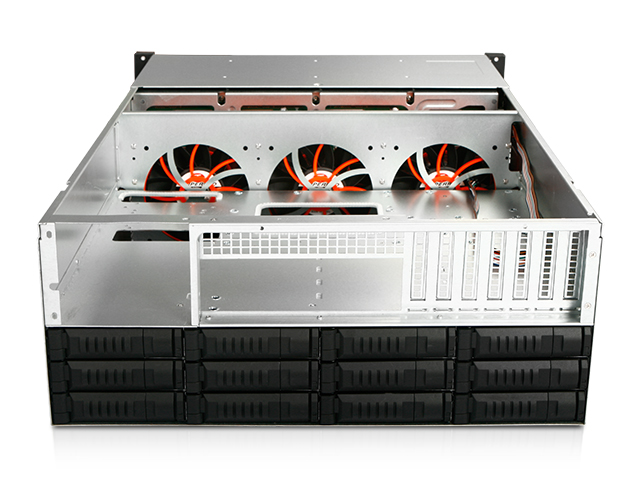

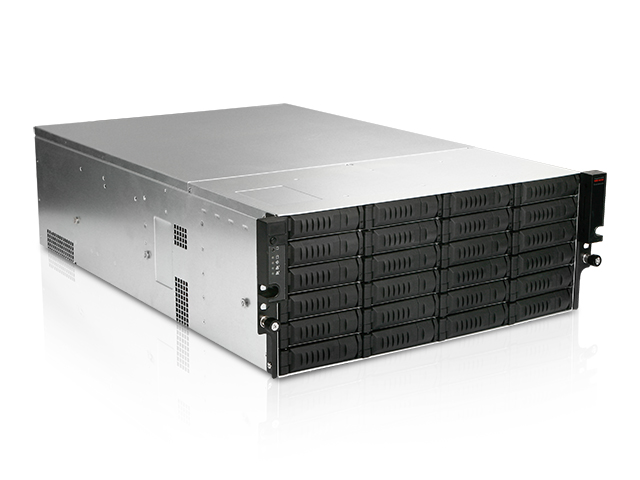

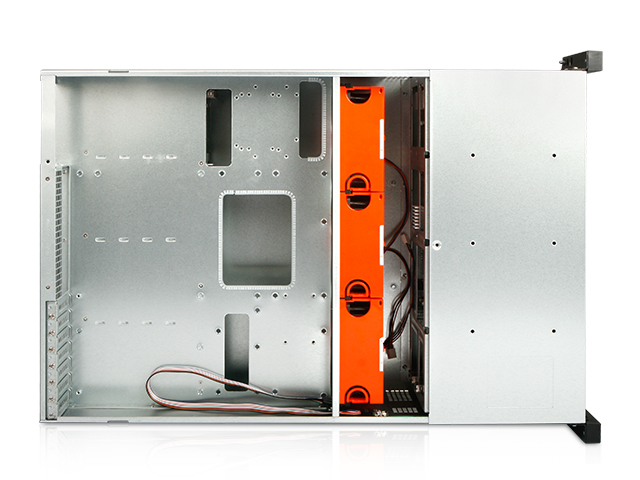

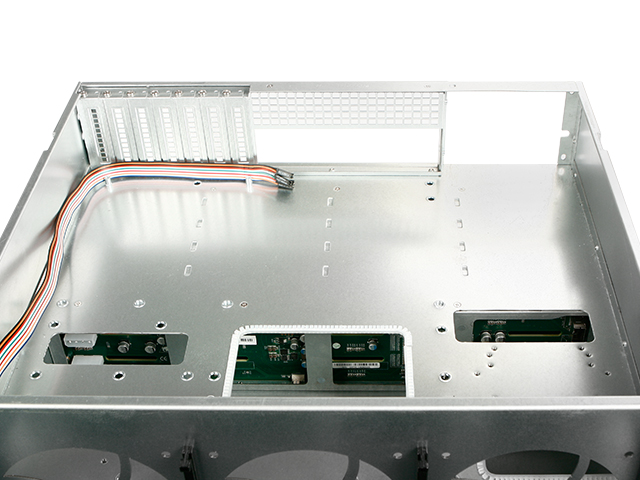

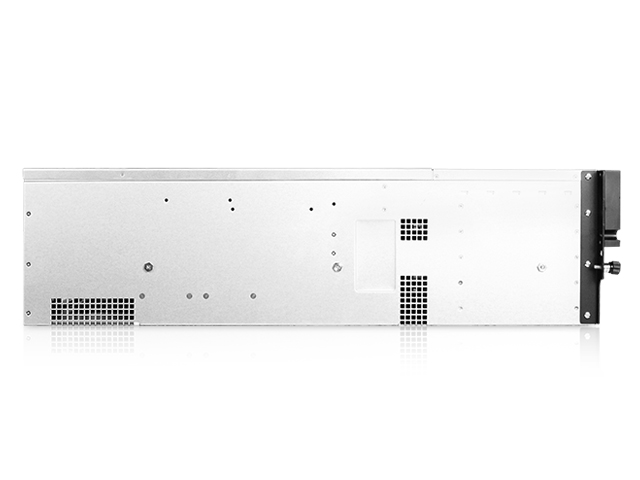

	EX4M36-EXP 4U 36-Bay Storage Server Rackmount Chassis with SAS Expander Fiber Optical Drive Tray Status Indicator Power + LAN + HDD LED Indicator SAS Expander SFF-8087 with SGPIO Supports EATX Motherboard Supports Both SAS/SATA Hard Drives Sliding Rails Included 3x 120mm Cooling Fans Fully RoHS Compliant

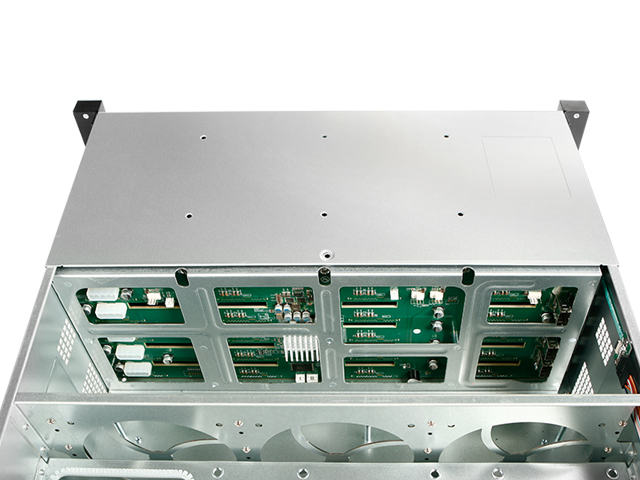

Product Introduction The EX storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make EX series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	EX4M36-EXP
RoHS Compliance Version	Yes
Standard Drive Bays	2.5" Drive (internal): 2 Hotswap 3.5": 36
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD, LAN
Switches	Power, Reset
Expansion Slots	7 (Low profile)
Material of Main Chassis	Heavy-duty SGCC
Color of Main Chassis	Silver
Motherboard Size	12 x 13 (EATX, ATX, microATX)

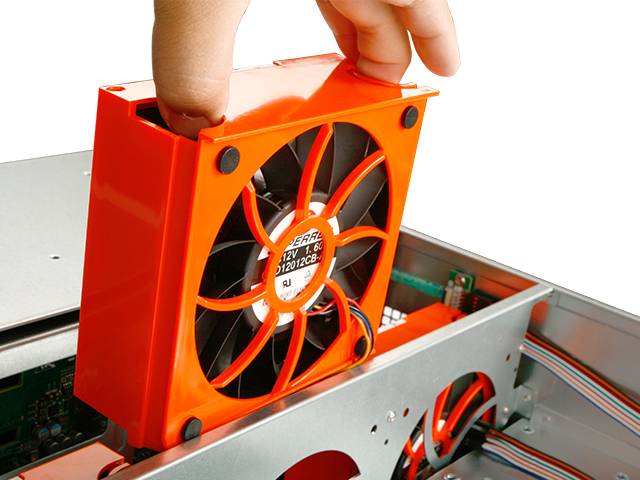

Cooling Fan	3x120mm
Ordering Information (Part Number)	Black
Dimensions (WxHxD)	19.00" x 7.00" x 26.73" 482.6 mm x 177.8 mm x 678.9 mm
Notes	- a controller with at least six SFF-8087 or SFF-8643 connectors is required

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.
