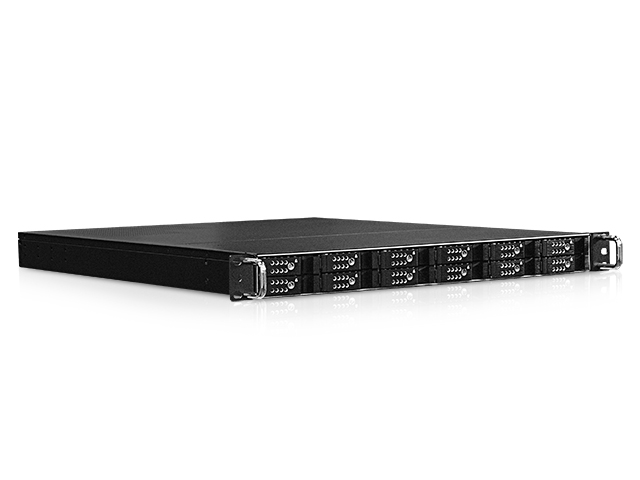

	G-112-ATX Build-to-Order - 1U 2.5" 12-Bay Storage Server Rackmount Chassis Hot-swappable 12x 2.5" Drive Bays miniSAS (SFF-8087) Backplane Supports 2.5" SAS I/II & SATA I/II/III HDDs/SSDs Support HDD/SSD Thickness from 7 to 15mm Mechanical Handle Locking & Keylock Design Guiding Tray-Rails for Vibration Protection Compatible with ATX Motherboard

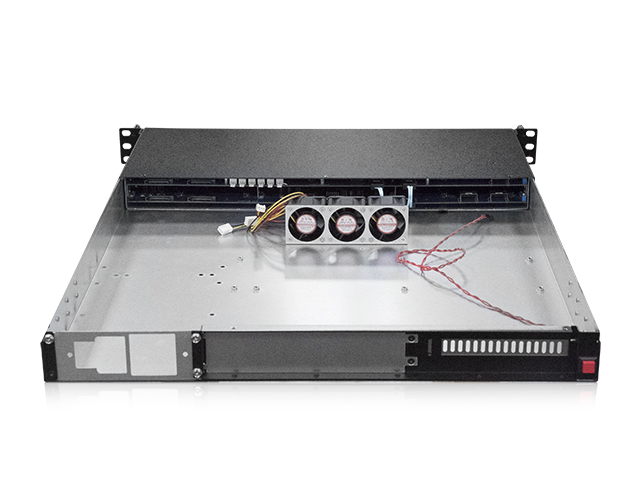

Product Introduction iSG 1U industrial rackmount chassis, G-112-ATX has three SFF-8087 connectors on the backplane to support the latest SAS and SATA 2.5" HDD/SSD and also is compatible with ATX and mini redundant power supplies. Three 40mm cooling fans provide the best ventilation to prevent critical equipment from heat damage. G-112-ATX provides server or cluster maximum reliability and performance.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	G-112-ATX
RoHS Compliance Version	Yes
Standard Drive Bays	Hotswap 2.5": 12
Hotswap HDD Type:	2.5" SAS I/II & SATA I/II/III
Indicators	HDD
Switches	Power on/off(real panel)
Supported PSU Type	1U Single/ 1U Redundant PSU
Expansion Slots	1
Security	Key Lock
Material of Handle	Steel
Material of Main Chassis	Steel
Color of Main Chassis	Black
Motherboard Size	12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan	3x40mm
Dimensions (WxHxD)	17.20" x 1.75" x 22.08" 436.9 mm x 44.4 mm x 560.8 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

Model #

Description

Compatible Motherboards

Model #

Motherboard Size

Company Name
