G-336-ATX
Build-to-Order - 3U 2.5" 36-Bay Storage Server Rackmount Chassis

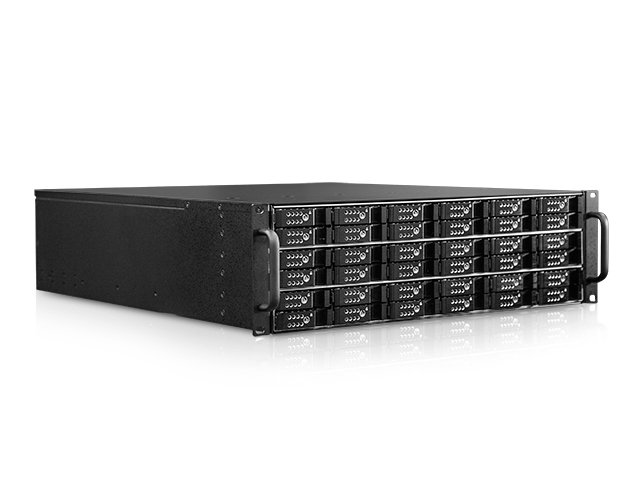

  • Hot-swappable 36x 2.5" Drive Bays
  • miniSAS (SFF-8087) Backplane
  • Supports 2.5" SAS I/II & SATA I/II/III HDDs/SSDs
  • Support HDD/SSD Thickness from 7 to 15mm
  • Mechanical Handle Locking & Keylock Design
  • Guiding Tray-Rails for Vibration Protection
  • Compatible with ATX Motherboard



Product Introduction

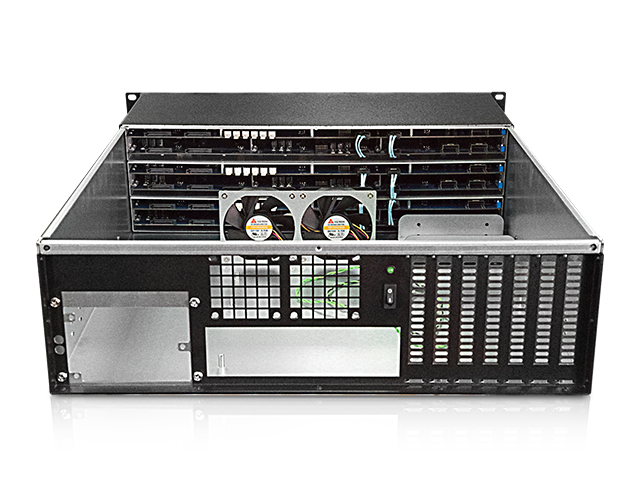

iSG 3U industrial rackmount chassis, G-336-ATX has nine SFF-8087 connectors on the backplane to support the latest SAS and SATA 2.5" HDD/SSD and also is compatible with ATX and mini redundant power supplies. Twp 80mm cooling fans provide the best ventilation to prevent critical equipment from heat damage. G-336-ATX provides server or cluster maximum reliability and performance.


Model NumberG-336-ATX
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 2.5": 36
Hotswap HDD Type:2.5" SAS I/II & SATA I/II/III
IndicatorsHDD

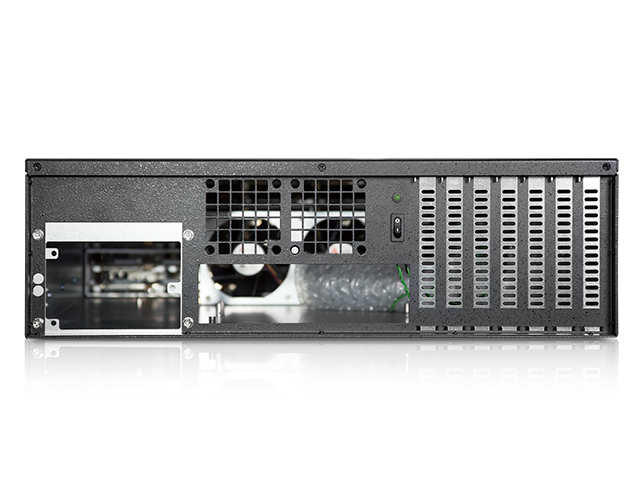

SwitchesPower on/off(real panel)
Supported PSU Type2U Single/ 2U Redundant PSU
Expansion Slots7
SecurityKey Lock
Material of HandleSteel
Material of Main ChassisSteel
Color of Main ChassisBlack
Motherboard Size12 x 9.6 (ATX, microATX, mini-ITX)

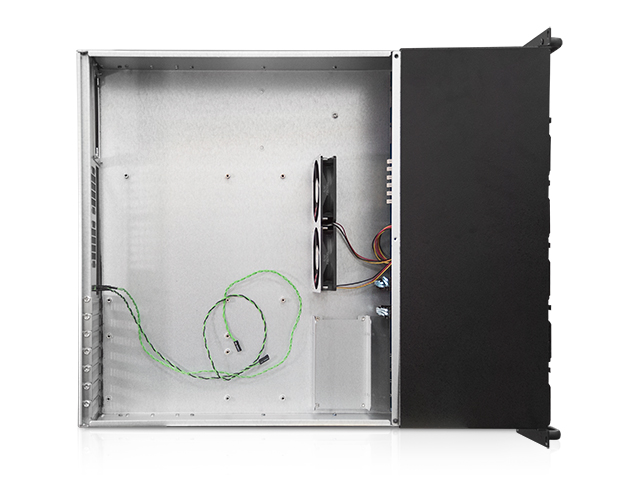

Cooling Fan2x80mm
Optional Fan:60mm x2
Ordering Information
(Part Number)
Black
Dimensions (WxHxD)17.20" x 1.75" x 22.08"
436.9 mm x 44.4 mm x 560.8 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
