M-280-JB

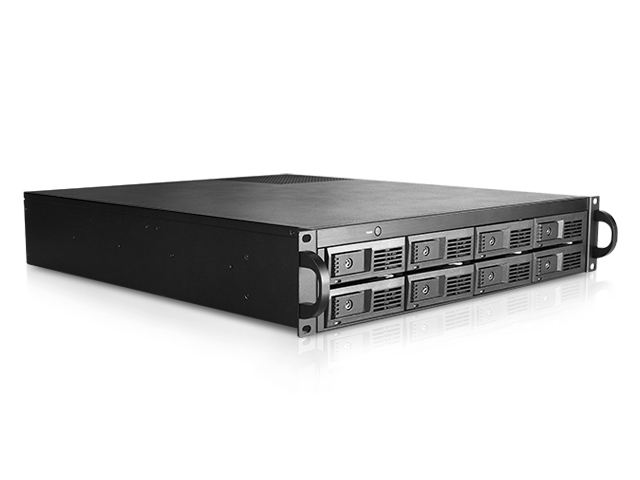

2U 3.5" 8-Bay Trayless JBOD Storage Rackmount Chassis

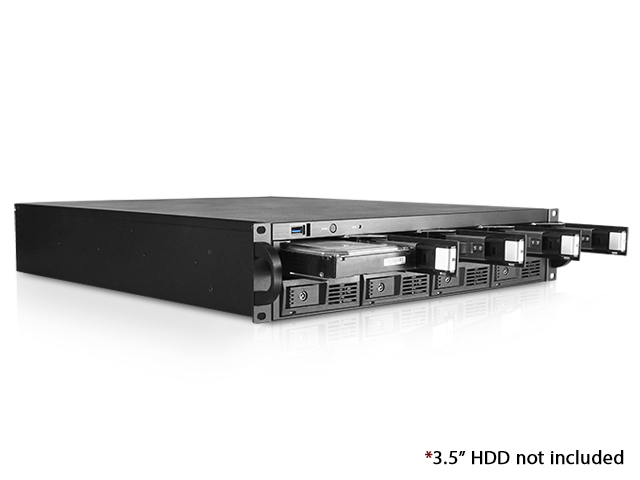

  • Trayless and Hot-swappable 8x 3.5" Drive Bays
  • Power and HDD Activity Indicators
  • miniSAS (SFF-8087) Backplane
  • Metal Keylock
  • Fully RoHS Compliance



Product Introduction
The M-280-JB M series of trayless storage JBOD rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage chassis. The chassis has two SFF-8087 connectors on the backplane to support the latest SAS and SATA hard drives. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.


Model NumberM-280-JB
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 3.5": 8
5.25" Ext. Bay: 1 (at back panel)
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Supported PSU TypeATX PS2

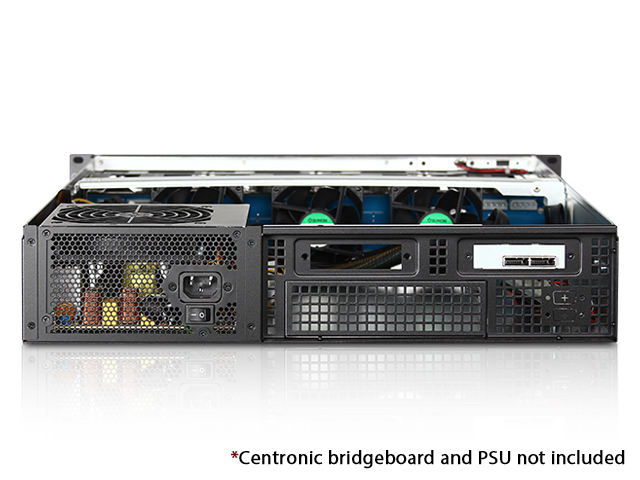

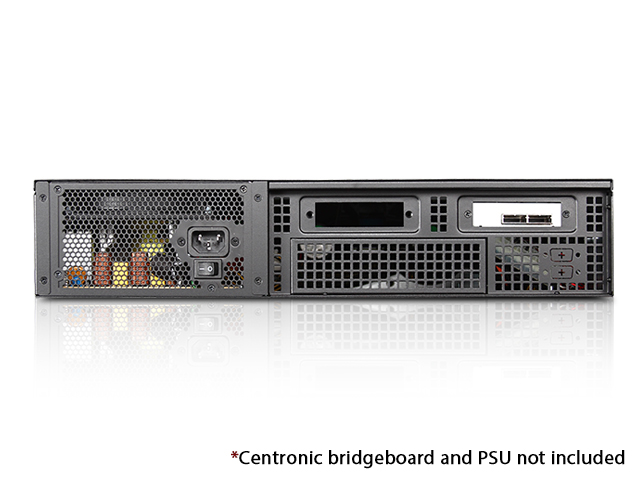

Expansion Slots2 (Centronics)
SecurityKey Lock
Material of Front BezelAluminum plus steel
Material of HandleAluminum
Material of Main ChassisSteel
Color of Front BezelBlack
Color of Main ChassisBlack
Cooling Fan3x80mm
Dimensions (WxHxD)19.00" x 3.50" x 21.69"
482.6 mm x 88.9 mm x 550.9 mm


FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
