PD-BSA304

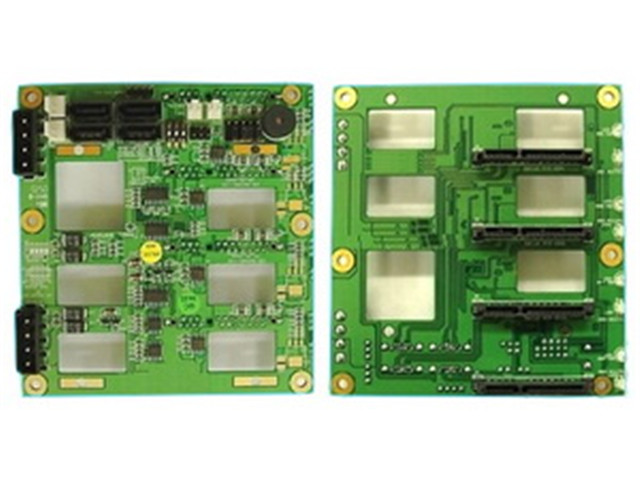

3U 4-PORT RAID serial ATA backplane
  • 4 PCB Layer
  • Support HBA SATA 7 pin and HDD SATA 22 pin (7+15 pin) connectors
  • Support two big 4P DC power in connectors
  • Support 4 SATA hard disk drive inrush current control for Hot-swapping
  • Support 4 on board 3mm blue LED for HDD inserts power shown and 4 3mm dual orange/red color for HDD access/fail shown
  • Support HBA ARECA and 3 WARE raid card HDD access input pin header
  • Support HBA ARECA HDD fail input 4 pin header
  • Support 2 pcs 3 pin wafers for FAN speed monitoring, when FAN failure the LED active and buzzer alarm
  • Minimum Fan Speed Detection: The FAN IC asserts LED1, LED2 if the fan frequency is below 79 Hz, which corresponds to a fan speed of approximately 2370 rpm. The fan remains powered during a locked rotor or an under-speed failure condition
  • Support fan install or not install setting. (default is fan install)
  • Support one point temperature overheating sensor and temperature overheating setting for 50? or 60?, when temperature overheating the LED active and buzzer alarm
  • Support 2 pin wafer for supply power fail input, when power supply fail LED active and buzzer alarm
  • Support one 2 pin wafer supply power mute input
  • Support SATA HDD 3.3V (option)
  • The PCB PB free



Product Introduction



Model NumberPD-BSA304
RoHS Compliance VersionYes
Standard Drive Bays None
Dimensions (WxHxD)4.50" x 4.20" x 0.10"
114.3 mm x 106.7 mm x 2.5 mm
