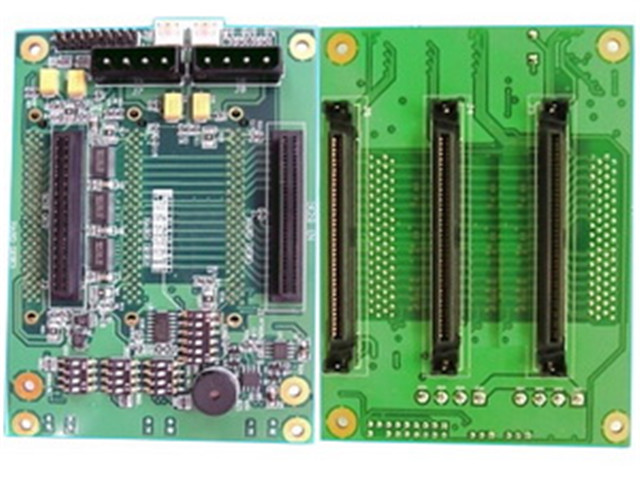

Support SCSI interface: Ultra 320/160 backward compatibility
Support hard disk drive 80pin SCA2 Ultra 320/160 backward compatibility
Support SCSI-IN and SCSI-OUT connector (68 pin female)
Support 3-solt hard disk drive inrush current control for Hot-swapping
Support 2pcs external FAN speed monitoring and FAN failure buzzer alarm and red led active pin header. (Buzzer on board)
Minimum Fan Speed Detection: The FAN IC asserts LED1, LED2 if the fan frequency is below 79 Hz, which corresponds to a fan speed of approximately 2370 rpm. The fan remains powered during a locked rotor or an under-speed failure condition
Support one point temperature sensor and temperature overheating setting for 50 or 60 (DS4 sw6 OFF default set is 60)
Support FAN install or not install set for DIP switch. (Default set DS6 sw4,sw5 OFF for FAN install)
Support hard disk drive motor spin mode for Delay_Start or Remote_Start setting. (Default set DS4 sw3 ON,sw2 OFF)
Support 2 pcs big 4P D-type DC power connectors
Support external pin headers for HDD installation LED and HDD access and one overheating LED and mute switch
Active terminator on board with auto detection for Ultra-320/160 backward compatibility
Support terminators enable or disable set. (Default set DS4 sw1 ON for terminator enable)
Support SCA2 ID setting function default is ID0, ID1, and ID2
Default DIP SW4 setting is sw1 on, sw2 off, sw3 on, sw4 off, sw5 off, sw6 off
