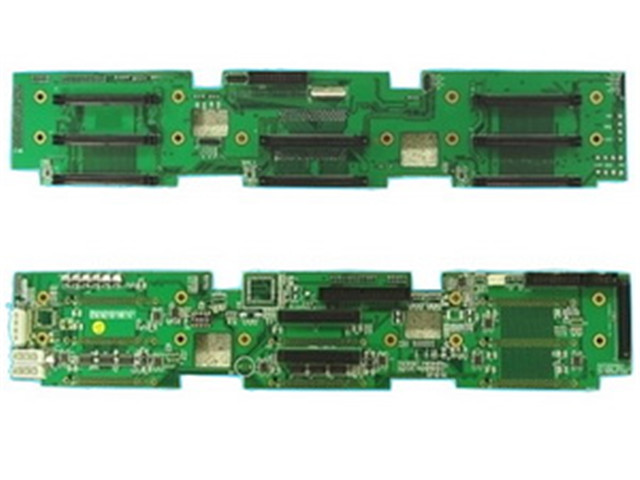

Hard disk interface: SCA2 80pin 320/160 backward compatibility
Support 2 pcs SCSI-IN and SCSI out connector (68 pin female)
Support 8 pcs SCA2 80 pin female connector
Hard disk ID default setting is channel 1 is ID0, ID1, ID2, ID3 and channel 2 is ID4, ID5, ID6 and ID8
Support 8 port hard disk drive inrush current control for Hot-swapping
Support 8 port hard disk power mosfet control
Support 3 pcs 4 pin wafer for FAN
Support 2 X 5 pin header for PWM input
Support two pcs 2 x 7 pin headers and one pcs 2 x 5 pin header for hard disk power insert LED and hard disk access LED shown
Support DS1 dip-switch hard disk motor spin up Delay Start or Remote Start for DIP switch setting (default setting is for Delay Start)
Active terminator on board with auto detection for Ultra-320/160 backward compatibility.(terminator IC is DALLAS 2119M)
Support DS1 DIP switch setting for terminator 1 disable or enable function.(If use daisy chain must turn disable, the default is for channel 1 terminator enable)
Support SCSI channels 1 4 port and SCSI channel 2 4 port in put or SCSI one channel 8 port
Support 3 pcs DC white power connectors in big 4-pin D-type and 1 pcs small DC 4 pin
Support one slim CD-ROM connector and one CD-ROM box header
Support in and out 2 X 5 box header for USB
Support 2 X 12 box header for system LED and LAN LED and system switch
