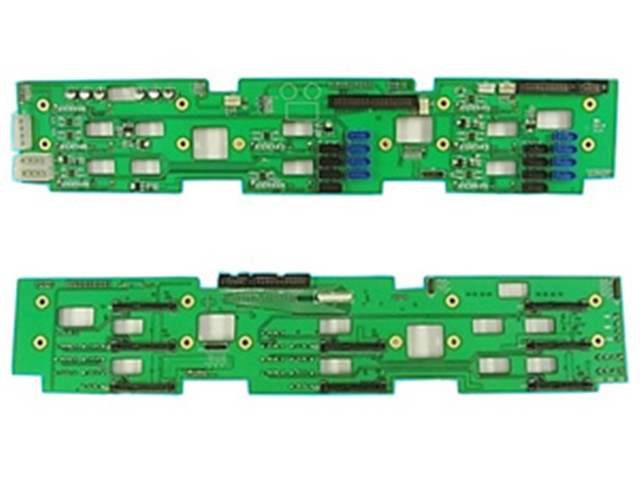

SATA 7 pin lock interface: for SAS 3G backward compatibility
Hard disk interface: SAS 29 pin male connector
Support 8 pcs SAS 7 pin blue connector for host primary
Support 8 pcs SAS 7 pin black connector for host secondary
Support 8 pcs SAS 29 pin female connector
Hard disk first ID default setting is J16-HDD0 blue color primary, J17-HDD0 black color secondary ,J18-HDD1 blue color primary, J19-HDD1 black color secondary, J20-HDD2 blue color primary, J21-HDD2 black color secondary, J22-HDD3 blue color primary, J23-HDD3 black color secondary
Hard disk second ID default setting is J24-HDD4 blue color primary, J25-HDD4 black color secondary ,J26-HDD5 blue color primary, J27-HDD5 black color secondary, J28-HDD6 blue color primary, J29-HDD6 black color secondary, J30-HDD7 blue color primary, J31-HDD7 black color secondary
Support 8 bay hard disk drive inrush current control for Hot-swapping
Support 3 pcs 4 pin FAN1~FAN3 PWM control from M/B. Support FAN1~FAN3 tech for M/B sensor
Support 1 pcs 2 x 5 pin headers and 2 pcs 2 x 7 pin header for hard disk power insert LED and hard disk LED shown
Hard disk insert power LED is On, not insert power LED is off
SAS hard disk ready LED is on, access R/W LED is flash, from HDD P11 support
SATA hard disk ready LED is off, access R/W LED is blink, from HDD P11 support
Support 3 pcs white power connectors in big 4-pin D-type
Support HDD power DC+3.3V, DC +5.0V, DC +12V
Support 1 pcs power small 4p connector
Support one pcs slim CD-ROM connector and one pcs CD-ROM box header
Support in and out 2 X 5 pin header for USB. (default key pin-9)
Support 2 X 12 box header for system LED and LAN LED and system switch
Support 2 X 7 pin 2.0 mm for FAN pwm in put and FAN tech
