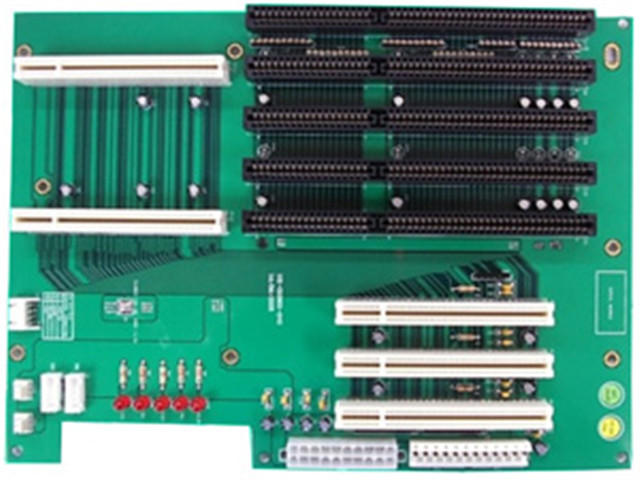

PD-IMG206-0
PICMG PCISA backplane
  • 4 PCB Layer
  • Support 2 sets PICMG (PCI+ISA) connector
  • Support 3 slots PCI 32 bit connector
  • Support 3 slots ISA connector
  • Support 2 pcs 5 pin connector for AT keyboard
  • Support 2 pcs 3 pin for DC-12V connectors
  • Support 5 pcs power LED for +12V, +3.3V, +5V, -12V, -5V
  • Support 1 pcs AT 12 pin power DC in connector
  • Support 1 pcs ATX 20 pin DC in power connector
  • Support 1 pcs 4 pin ATX power control connector



Product Introduction



Model NumberPD-IMG206-0
RoHS Compliance VersionYes
Standard Drive Bays None
Dimensions (WxHxD)10.20" x 7.40" x 0.10"
259.1 mm x 188.0 mm x 2.5 mm
