S-35-B34

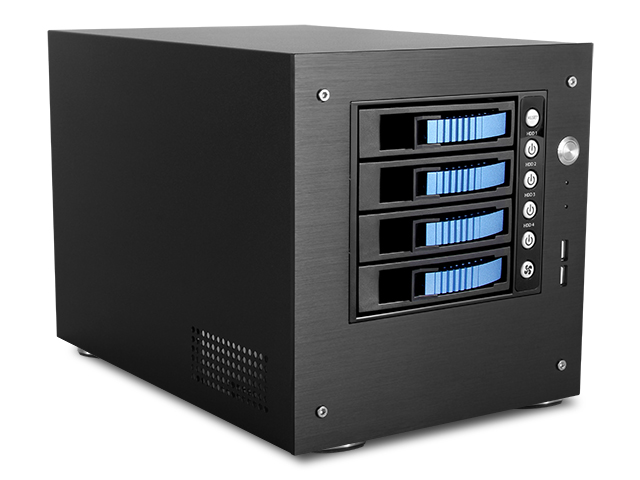

Compact Stylish 4x 3.5" Hotswap mini-ITX Tower
  • Sleek aluminum front panel with color options for HDD handles
  • 4 hotswappable 3.5" bays for HDD quick swap
  • Compatible with 2.5" HDDs/SSDs
  • Supports 6.0Gb/s SATA/SAS HDDs
  • Compatible with flex power supplies
  • Heavy duty SECC construction
  • Supports standard I/O slot
  • Supports mini-ITX motherboards



Product Introduction
The external multi-bay tower series are designed specially for storage applications. The wide variety of the tower with hard drive cages is able to easily max the hard drive capacity up to 4 bays for storing mass data. Optional 120mm cooling fan can be added to enhance the ventilation inside. The external NAS tower chassis with solid construction is a cost-effective and flexible solution for your critical data storage. YouTube video: How to build a NAS or HTPC with the iSG Industrial S-35-DE4 4x 3.5" Hotswap Trayless mini-ITX Tower https://youtu.be/dyT8PdKIjiQ


Model NumberS-35-B34
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 4
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Supported PSU Type1U Flex
Expansion Slots1
Material of Front BezelAluminum 4mm
Material of Main ChassisSECC 0.8mm
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size6.7 x 6.7 (mini-ITX)
Optional Fan:120mm x1
Ordering Information
(Part Number)
Black HDD Handle:S-35-B4BK
Blue HDD Handle:S-35-B4BL
Red HDD Handle:S-35-B4RD
Silver HDD Handle:S-35-B4SL
Dimensions (WxHxD)8.68" x 8.90" x 12.76"
220.5 mm x 226.1 mm x 324.1 mm
