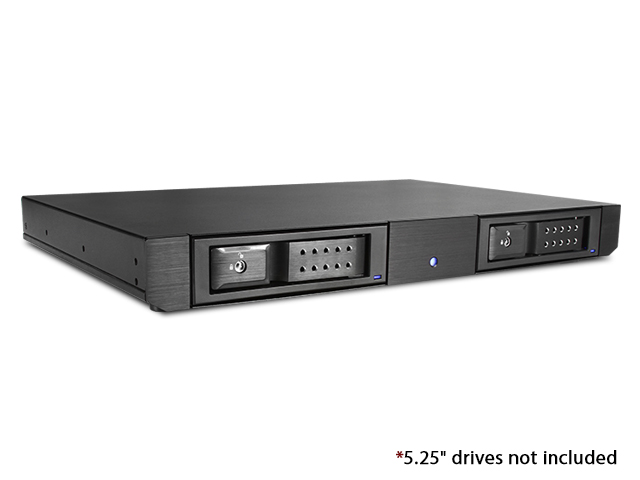

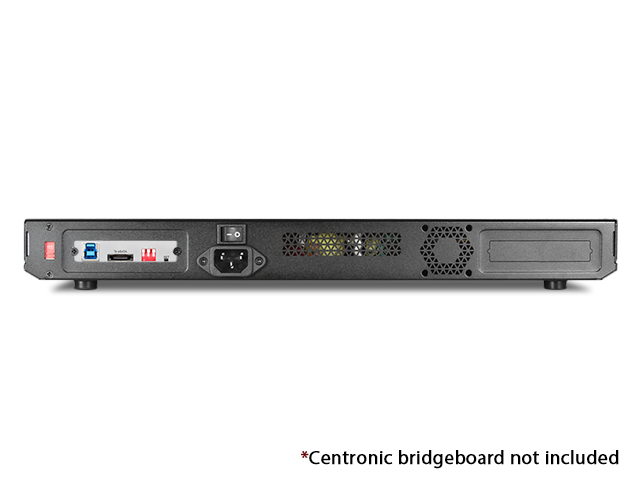

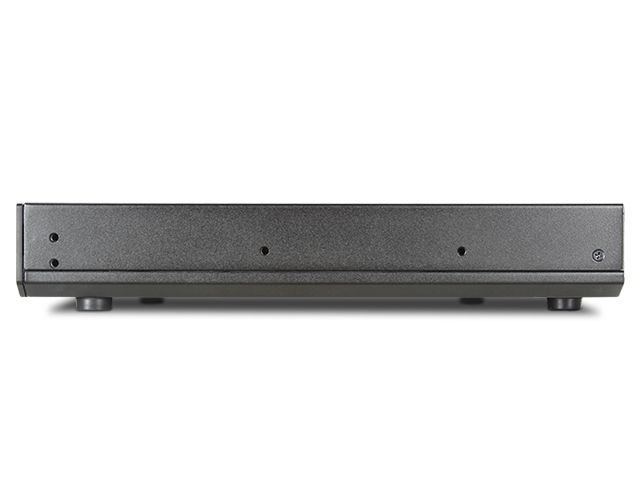

	T-12 1U Compact Desktop and Rackmount JBOD Chassis Ultra compact industrial chassis with 11" Depth Desktop or rackmount convertible Supports various interfaces including USB 3.0, eSATA, and miniSAS (SFF-8088) Full range AC input 150W power supply included 40mm cooling fan for ventilation
Product Introduction iSG external multi-bay JBOD chassis is designed specially for storage applications. With iSG (An-Hsin) hotswap hard drive cages, it is able to hold up to 8x 2.5" HDDs/SSDs for storing mass data. 40mm cooling fan enhances the ventilation inside. The external JBOD storage chassis with solid construction is a cost-effective and flexible solution for your critical data storage.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	T-12
RoHS Compliance Version	Yes
Standard Drive Bays	5.25" Drives: 2
Indicators	Power
Switches	Power
Expansion Slots	2 (Centronics)
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	SGCC 1.0mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Cooling Fan	1x40mm
Optional Fan:	40mm x1
Dimensions (WxHxD)	19.00" x 1.75" x 11.18" 482.6 mm x 44.4 mm x 284.0 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.
