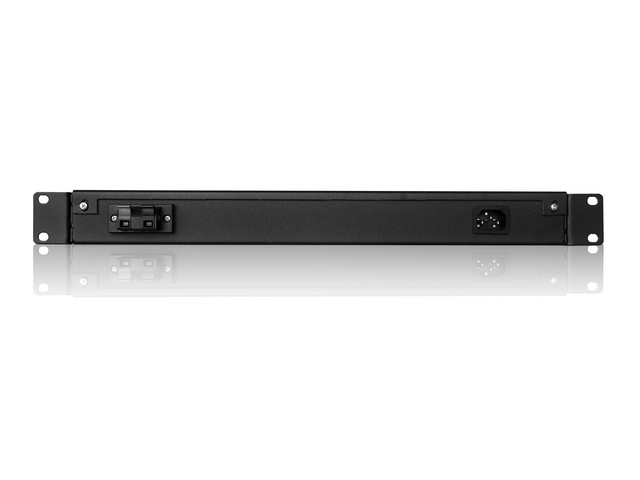

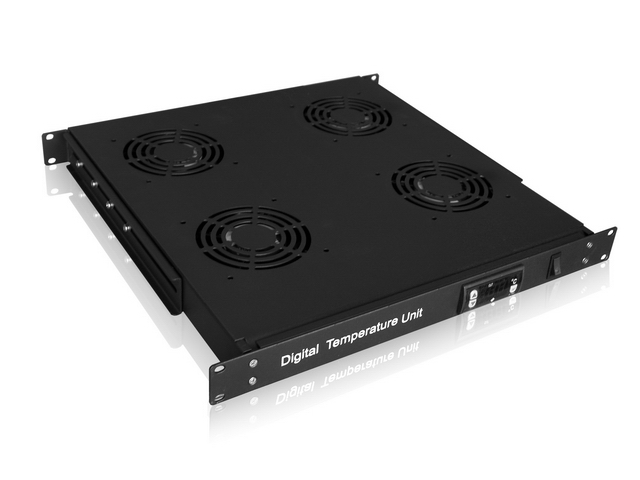

WA-DT0414
1U Digital Temperature Unit
  • High Contrast, Easy-to-read LCD Display
  • Two Built-in AC Outlets
  • Over Temperature Alert
  • 1U with Metal Enclosure for Rackmount and Desktop
  • Temperature Sensor Extension to Monitor Specific Area
  • Accuracy: +/-1 deg.C
  • Display: 2-way 8-section digital pipe (red)
  • Range: 0 ~ 50 deg.C
  • Mounting: 19" standard
  • Ambient Temperature -10 ~ 70 deg.C
  • Maintain Temperature -20 ~ 80 deg.C
  • Ambient Humidity < 85% RH
  • Input: PCT (10K)
  • Output : 2-way output
  • Consumption 3W



Product Introduction
WA-DT0414 is a versatile, battery-operated LCD thermometer, ideal for monitoring the ambient temperature within an equipment rack or room. The temperature is displayed in degrees of Celsius. WA-DT0414 is housed in a 1U metal enclosure for easy rack-mounting, and two extra AC connections for powering up other rackmount accessories.


Model NumberWA-DT0414
RoHS Compliance VersionYes
Form Factor1U
Cooling Fan4x120mm
ColorBlack
Dimensions (WxHxD)19.00" x 11.30" x 1.75"
483 mm x 287 mm x 44 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
