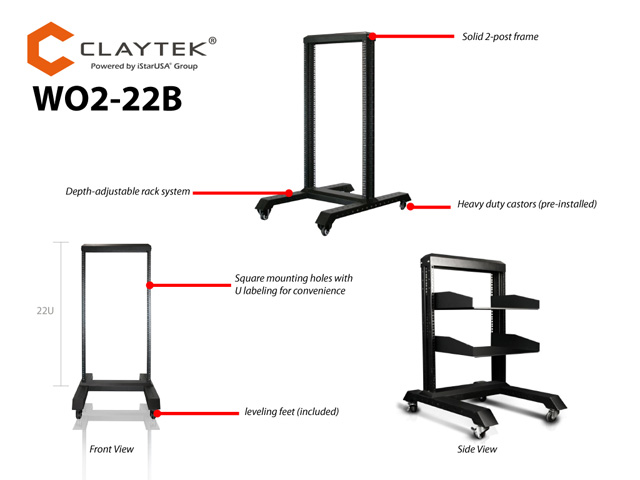

WO2-22B
22U 2 Post Open Frame Rack
  • Open Frame Construction Enables Quick Access to Rackmount System
  • Max Air Flow and Temperature Control by Central AC or by Room
  • Easy to Transport with Rolling Caster
  • Modular Design, Easily Assemble and Disassemble
  • Locking Mechanism Design on Casters
  • Comes with M6 Mounting Screws and Cage Nuts



Product Introduction
iSG 2-post open rack provide simplicity with mobility. Quick and easy assembly steps to setup open rack. The sturdy steel frame construction enforces stability and durability. Castors come standard to help moving the server easily to any location. Open frame rack has higher thermal manageability by room or central air conditioning. It is a flexible and cost-effective solution for rack-mount devices.


Model NumberWO2-22B
RoHS Compliance VersionYes
Form Factor22U
Loading Capacity165 lbs
Package Content20 sets of screws and cage nuts
Supported Chassis Depth11" and under
Dimensions (WxHxD)23.62" x 43.85" x 39.37"
600 mm x 1,114 mm x 1,000 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-PD01616 Outlet Lightening Surge Protection Power Distribution Unit
WA-PS06ABuild-to-Order - 6 Outlet Power Strip
WA-SFH40B2U Supporting Tray

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
