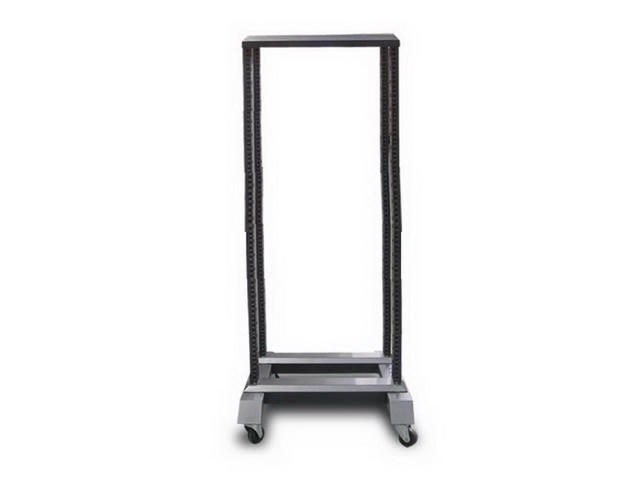

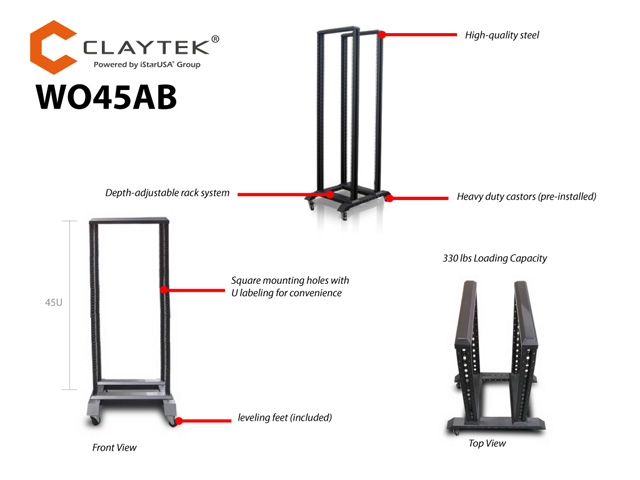

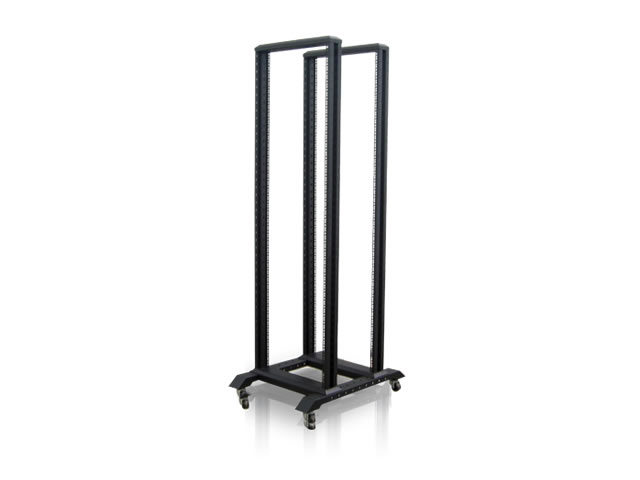

WO45AB
45U 4 Post Open Frame Rack
  • Open Frame Construction Enables Quick Access to Rackmount System
  • Max Air Flow and Temperature Control by Central AC or by Room
  • Easy to Transport with Rolling Caster
  • Manufactured in Accordance with ANSI / EIARS-310-D, IEC297-2, DIN41491 (PART 1), DIN41494 (PART7) and GB / T3047.2-921 Standards
  • Modular Design, Easily Assemble and Disassemble For Logistic and Relocation of Cabinet to Enable Cost-Effective Solution
  • Locking Mechanism Design on Casters
  • Comes with M6 Mounting Screws and Cage Nuts



Product Introduction
iSG open frame rack provide simplicity with mobility. Quick and easy assembly steps to setup open rack. The WO sturdy steel frame construction enforces stability and durability. Steel iron castors come standard to help moving the server easily to any location. Open frame rack has higher thermal manageability by room or central air conditioning. WO series is a flexible and cost-effective solution for rackmount cabinet.


Model NumberWO45AB
RoHS Compliance VersionYes
Form Factor45U
Loading Capacity330 lbs
Supported Chassis Depth31" and under
Internal Dimensions Depth: Outer post-to-post:31" max/ 9.5" min
Hole-to-hole:27" max/ 5.5" min
Dimensions (WxHxD)23.62" x 84.10" x 39.37"
600 mm x 2,136 mm x 1,000 mm
Notes- comes with 40 sets of M6 hex screws and cage nuts.


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-CM1UB1U Cable Management Rack Kit
WA-CM2UB2U Cable Management Rack Kit
WA-KBR96B1U Compact Sliding Keyboard Drawer
WA-LB96BCabinet Supporting Bar
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-PD01616 Outlet Lightening Surge Protection Power Distribution Unit
WA-PS06ABuild-to-Order - 6 Outlet Power Strip
WA-SF96BHeavy Duty Rackmount Shelf
WA-SFR96BHeavy Duty Sliding Tray
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
