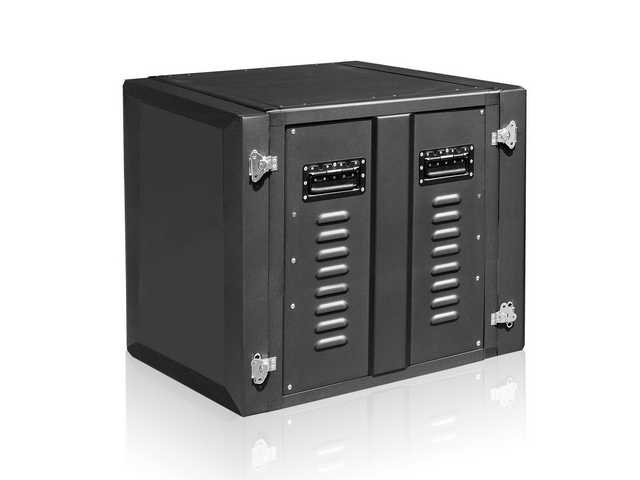

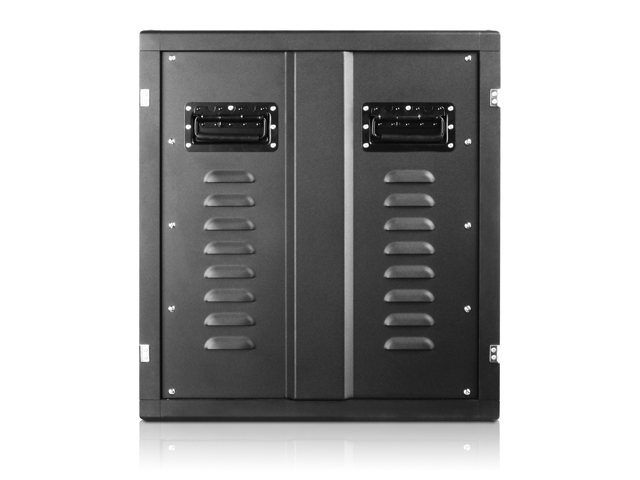

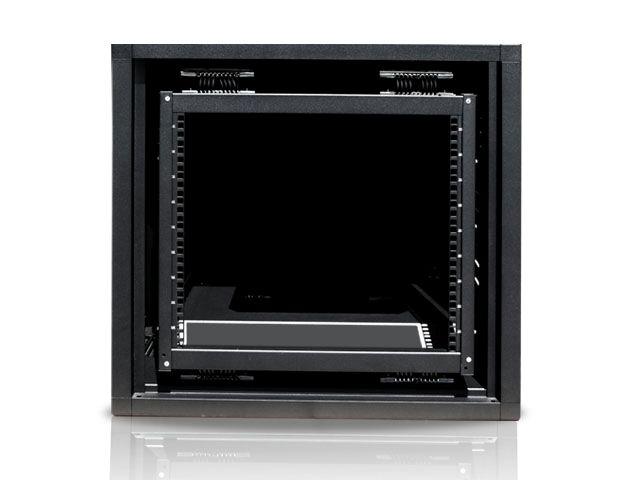

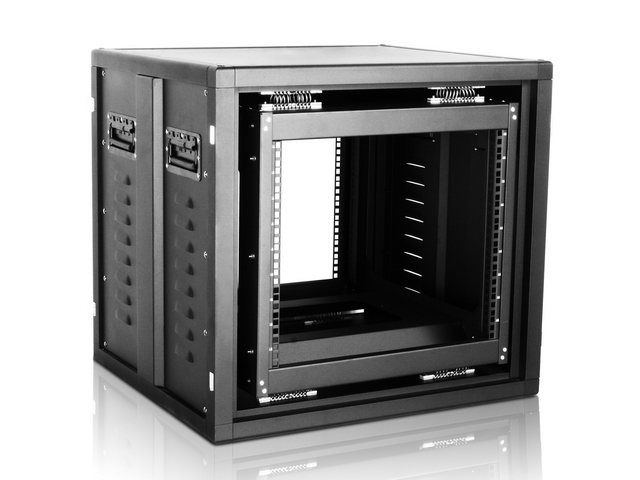

WSM-960
9U 600mm Depth Rackmount Server Cabinet
  • Rugged Shockmount Style
  • Patent Design on Industrial Spring under Cabinet Post Cage
  • Portable Handle
  • Anti-Vibration Design
  • Universal Fit Most of Rackmount Chassis and Equipment

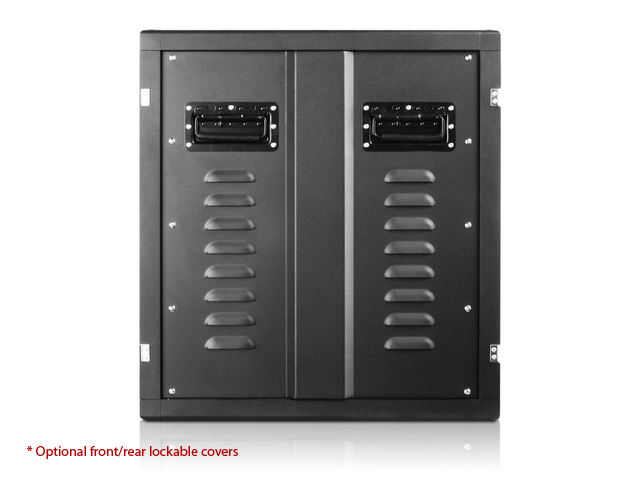

  • Optional Front/ Rear Lockable Covers (part number: WSM-DOOR-9U)
  • Optional Casters (part number: WSM-CASTER)
  • Comes with M5 Mounting Screws and Cage Nuts



Product Introduction
WSM series shockmount cabinet is built with high-quality aluminum/steel structures and anti-vibration patent design. With handle design, WSM series provides your critical rackmount equipment the ultimate mobility. Optional front and rear covers are able to prevent your critical systems from collision damage. This stylish and secured 19" cabinet is optimized for small business, research institutions, and professional studio.


Model NumberWSM-960
RoHS Compliance VersionYes
Form Factor9U
MaterialSPCC T:1.6mm
ColorBlack (Special Color on Request)
Loading Capacity176 lbs
Supported Chassis Depth23" and under
Dimensions (WxHxD)27.56" x 25.71" x 23.62"
700 mm x 653 mm x 600 mm


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-PS06ABuild-to-Order - 6 Outlet Power Strip
WSM-CASTERCaster for WSM Cabinet Series
WSM-DOOR-9U9U DOOR KIT FOR WSM-960

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
