WU-60B

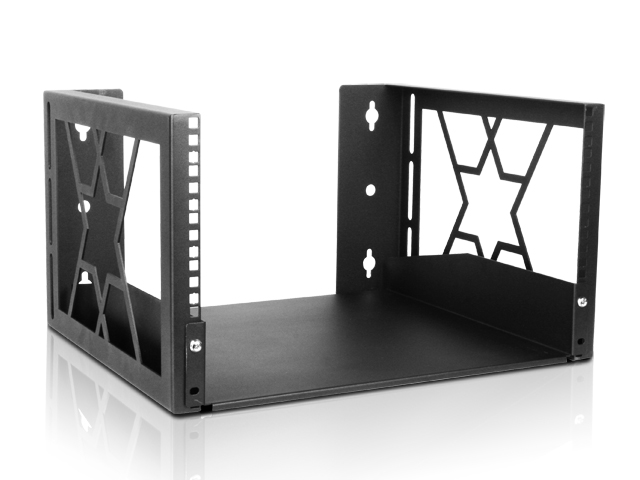

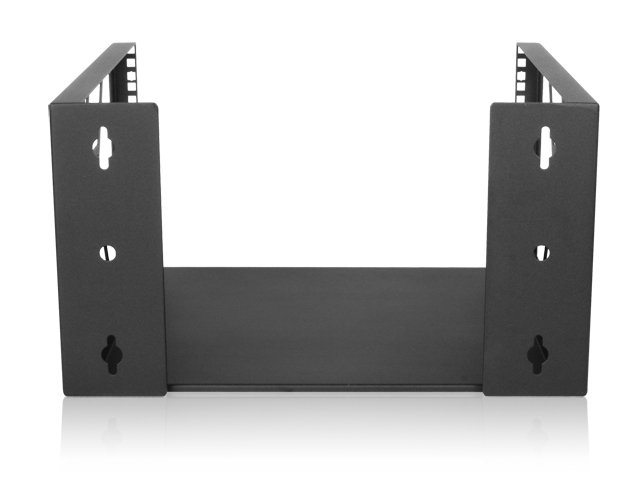

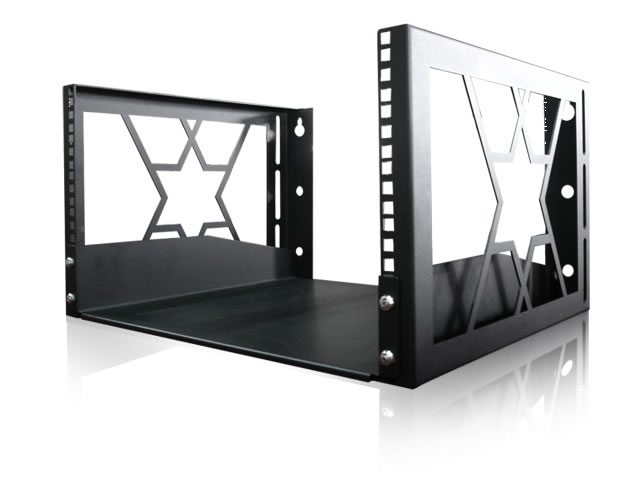

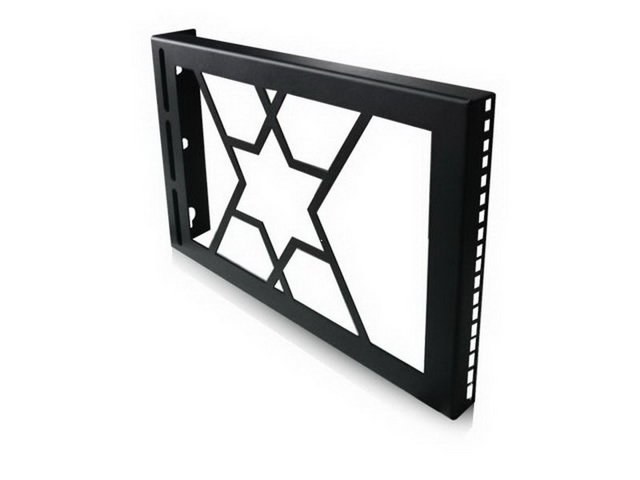

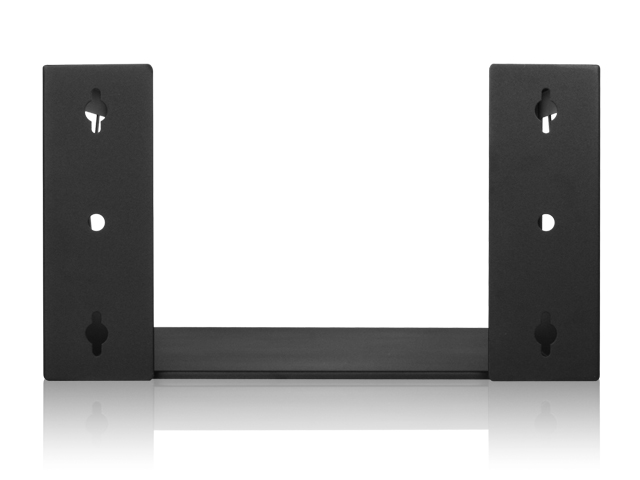

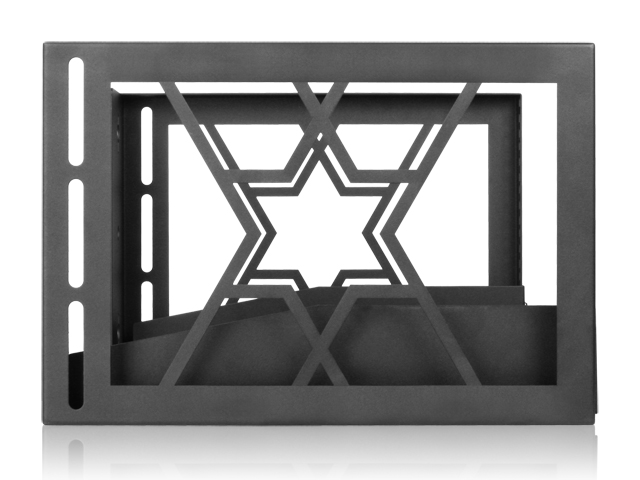

6U Wallmount Open Frame Rack
  • Open Frame Construction Enables Quick Access to Rackmount Devices
  • Max Air Flow and Temperature Control by Central AC or by Room
  • Modular Design, Easily Assemble and Disassemble
  • Wallmount or Desktop Standalone, Convenient for Storage
  • Cost-Effective Solution
  • Comes with M5 Mounting Screws and Cage Nuts

Product Introduction
StarMount, open frame wall-mount rack, provides simplicity with mobility. Quick and easy assembly steps to setup open rack. The WU sturdy steel frame construction enforces stability and durability. Open frame rack has higher thermal manageability by room or central air conditioning. WU series is a flexible and cost-effective solution for rack-mount devices.


Model NumberWU-60B
RoHS Compliance VersionYes
Form Factor6U
MaterialRack:SPCC 2.0mm
Base:SPCC 1.6mm
Loading Capacity165 lbs
Supported Chassis Depth16" and under
Dimensions (WxHxD)20.10" x 11.20" x 16.10"
511 mm x 284 mm x 409 mm
Notes- HTS code: 8473.30.5100 (ECCN is not applicable).


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
WA-PD01010 Outlet Overload Circuit Breaker Protection Power Distribution Unit
WA-PS06ABuild-to-Order - 6 Outlet Power Strip
WA-SW10-M5Cabinet/ Rack Screw Kit

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
