FS-13340

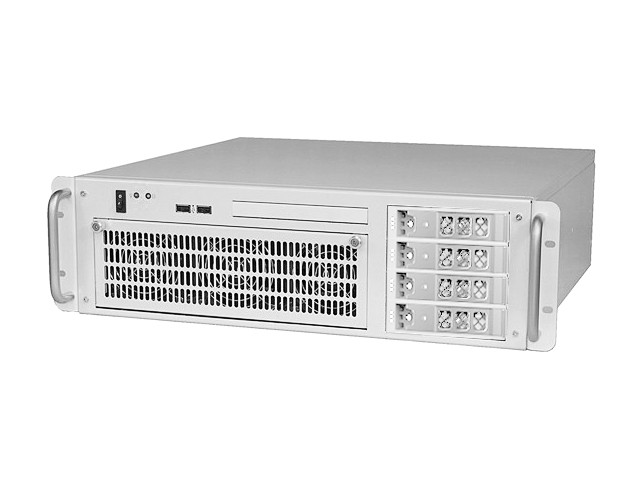

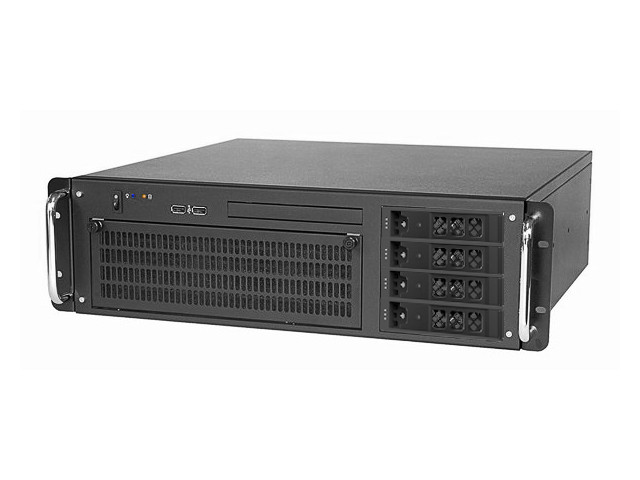

3U Rackmount chassis for Micro-ATX systems
  • 3U rackmount server chassis designed for Micro-ATX boards
  • Supports: 4 x expansion slots, 4 x SATA2 drive trays
  • DC cooling fan, Steel construction for industrial application

Product Introduction
FS-13340 is a 3u rackmount chassis support MATX System. Featured 4 x hot swappable 3.5" , 3 x front mounted 80mm fan with front accessible fan filter plus 2 x 60mm rear mounted fan for maximum cooling. Support slim otpical drive, 3 x 3.5" HDD, and PS II ATX power supply.


Model NumberFS-13340
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 3 x 3.5" HDD
Hot Swappable Drive Bay: 4 x 3.5" HDD Tray (Front)
Optical Drive Bay: 1 (Slim)
Form Factor:3U
Mother Board:Micro-ATX
Material Heavy duty cold-rolled steel
FinishBlack wet paint textured coat
ColorBlack
Weight30
Mounting OptionOptional Sliding rails
Front LED Indicator 1 x Activity; 1 x Power
Front USB Port2
Front Power Switch1
Memory Height Accepts standard size
Expansion Slot4 x PCI
Cooling System:2 x 60mm and 3 x 80mm fan
I/O Shield Standard I/O
Power SupplyPSII 300W/400W/500W/600W
Dimensions (WxHxD)19.00" x 3.46" x 16.63"
482.6 mm x 87.9 mm x 422.4 mm
