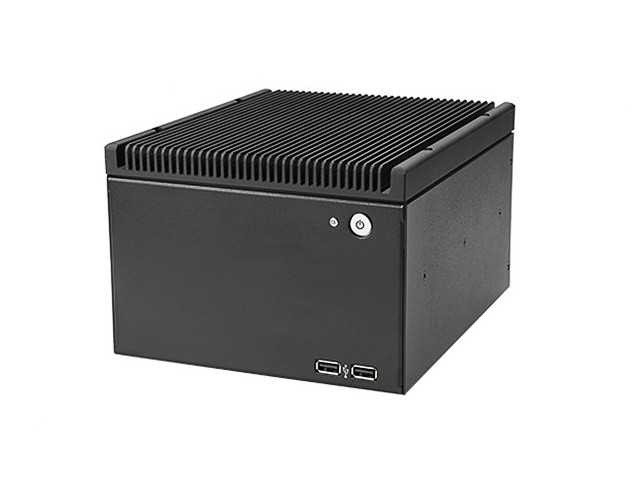

FS-BB1150-2
Fanless Bare Server System
  • For Mini-ITX Form factor ASROCK IMB150 Motherboard with CPU TDP 20W max.
  • Support 2 x Expansion slot for PCI or PCI-E.
  • Simple assembling and Easy system integration.
  • Silent, dust-free & energy-efficient operation.



Product Introduction



Model NumberFS-BB1150-2
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2.5" HDD x 1.
Front PanelPower switch x 1.
USB 2.0 Port x 2.
HDD LED x 1.
Power LED x 1.
Back PanelCOM ports x 6 .
PS/2 x 2 (1 x keyboard, 1 x mouse).
HDMI x 1. ANT x 2.
VGA x1. Gigabit LAN x 2.
USB 2.0 Port x 2. USB 3.0 Port x 2.
Audio IN / OUT. LPT x 1.
Expansion Slot for PCI or PCI-E x 2.
Material SGCC Anodized aluminum heatsink
External Adapter Input9-19V DC In
SurfaceBlack wet paint with texture coat
Dimensions (WxHxD)7.00" x 4.90" x 8.20"
177.8 mm x 124.5 mm x 208.3 mm


Download
FAQ


There are no FAQ entries for this model.

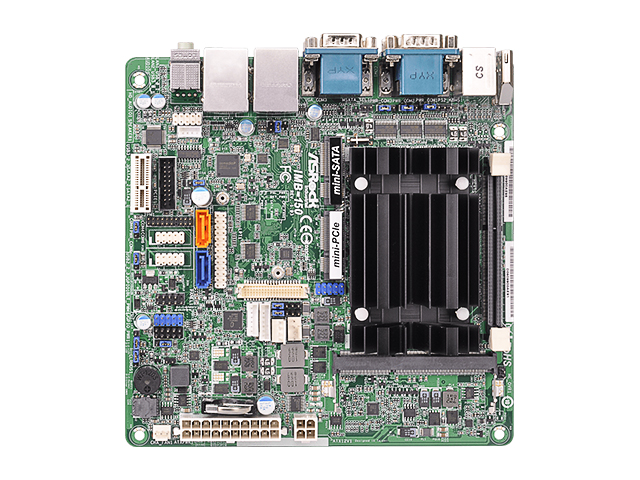

Motherboard

Motherboard Model NumberIMB-150
Processor System
CPUIntel® AtomTM Baytrail-M/D Processor Supports Hyper-Threading Technology
Core Number:4U
Max Speed:(By CPU)
L3 Cache 2MB
ChipsetN/A
BIOSUEFI
Expansion Slot
PCIe1
Mini PCIe1 (Half Size)
mSATA1
Memory
TechnologySupports Dual Channel DDR3L 1333MHz SDRAM
Max.8GB
Socket2 x SO-DIMM
Ethernet
Interface 10/100/1000 Mbps
Controller GbE LAN: 2 x Realtek RTL8111G-CG
Connector2 x RJ-45
SATA
Max Data Transfer Ratek SATA2 (3.0Gb/s)

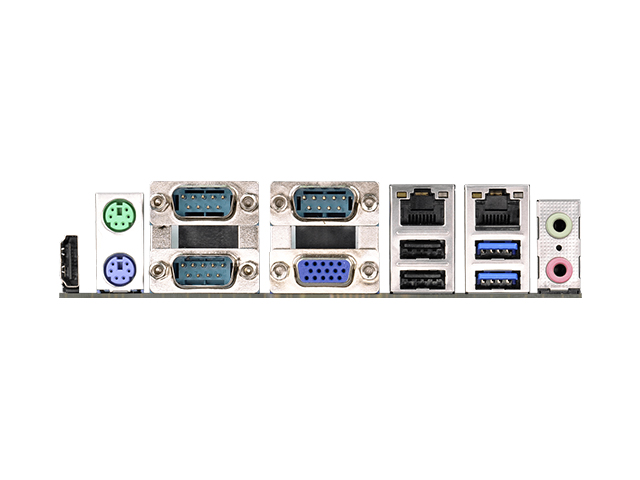

Rear I/O
VGA 1
HDMI 1
Ethernet2
USB:4 (2 x USB 3.0 compliant, 2 x USB 2.0 compliant)
Audio 2 (Mic-in, Line-out)
Serial3 (RS-232/422/485)
PS/2 2 (1 x keyboard and 1 x mouse)
Internal Connector
USB6 (2 x USB 3.0 compliant, 4 x USB 2.0 compliant)
LVDS/Inverter1-Jan
VGA0
Serial2 (RS-232)
SATA2 x SATA2 (3.0Gb/s)
m-SATA1 (shared)
Mini-PCIe1
Parallel1
IrDA0
GPIO4 x GPI + 4 x GPO
SATA PWR Output Con1
Speaker Header1
Watchdog Timer
OutputFrom Super I/O to drag RESETCON#
Interval256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR9-19V DC-In (4-pin ATX PWR Con)
Power OnAT/ATX Supported
AT : Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power input ready
Environment
Operating Temperature0ºC – 60ºC
Graphics
ControllerIntel® Gen7 Intel Graphics DX 11*, OGL3.2
VRAMShared Memory
VGASupports max. resolution 1920 x 1200
LVDSDual channel 24-bit, max resolution 1920 x 1200@60Hz
HDMISupports HDMI 1.3a, max resolution 1920x1200
DVINo
Display Port GraphicsNo
Multi Display GraphicsYes (Dual Display)
