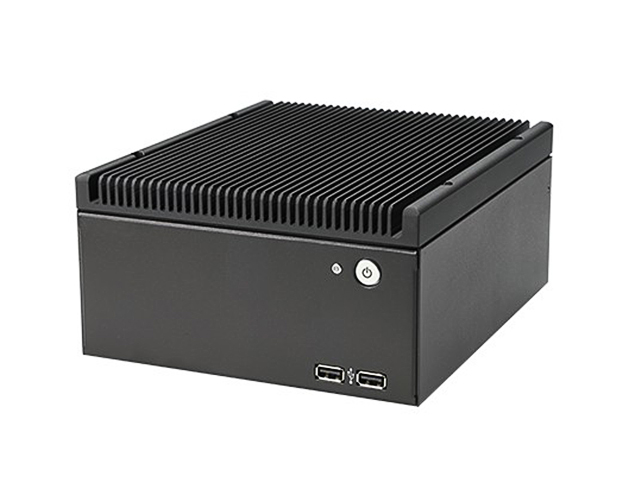

FS-BB1154-1
Fanless Bare Server System
  • For Mini-ITX Form factor ASROCK IMB154 Motherboard with CPU TDP 20W max.
  • Support 1 x Expansion Slot for PCI or PCI-E.
  • Simple assembling and Easy system integration.
  • Silent, dust-free & energy - efficient operation.



Product Introduction



Model NumberFS-BB1154-1
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2.5" HDD x 1.
Front PanelPower switch x 1.
USB 2.0 Port x 2.
HDD LED x 1.
USB 2.0 Port x 2.
Back PanelCOM Ports x 6 .
PS/2 x 2 (1 x Keyboard , 1 x Mouse).
HDMI x 1. ANT x 2.
VGA x1. Gigabit LAN x 2.
Expansion slot for PCI or PCI-E x 1 .
Audio IN / OUT. LPT x 1.
USB 3.0 Port x 4.
Material SGCC Anodized aluminum heatsink
External Adapter Input12V or 19-24V DC In
SurfaceBlack wet paint with texture coat
Dimensions (WxHxD)7.00" x 3.70" x 8.20"
177.8 mm x 94.0 mm x 208.3 mm


Download
FAQ


There are no FAQ entries for this model.

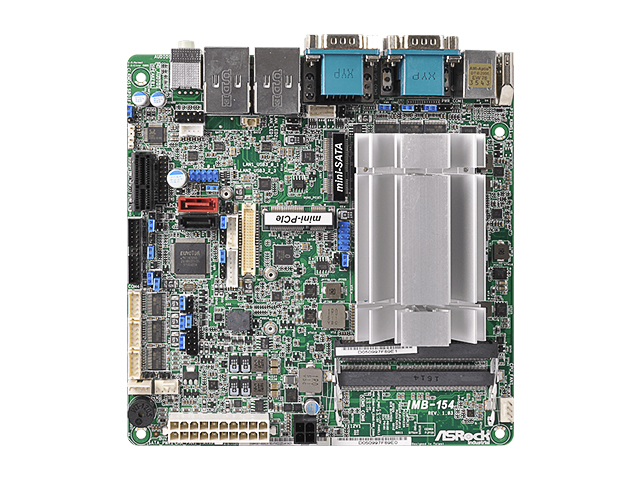

Motherboard

Motherboard Model NumberIMB-154
Processor System
CPUIntel® Pentium/Celeron Braswell SoC Supports Hyper-Threading Technology Default N3150 Quad core 6W processor
Core Number:(By CPU, Max 4)U
Max Speed:(By CPU)
L2 Cache (By CPU)
Chipset(By CPU)
BIOSUEFI
Expansion Slot
PCIe1 x PCIe x1 slot
Mini PCIe1 (full/half size,supports PCIe x1 and USB device)
mSATA1 (full size,supports SATA and USB device)
Memory
TechnologyDual Channel DDR3L 1333/1600 MHz SDRAM
Max.8GB
Socket2 x SO-DIMM
Ethernet
Interface 10/100/1000 Mbps
Controller 2 x Realtek RTL8111G
Connector2 x RJ-45
SATA
Max Data Transfer Ratek SATA3 (6.0Gb/s)

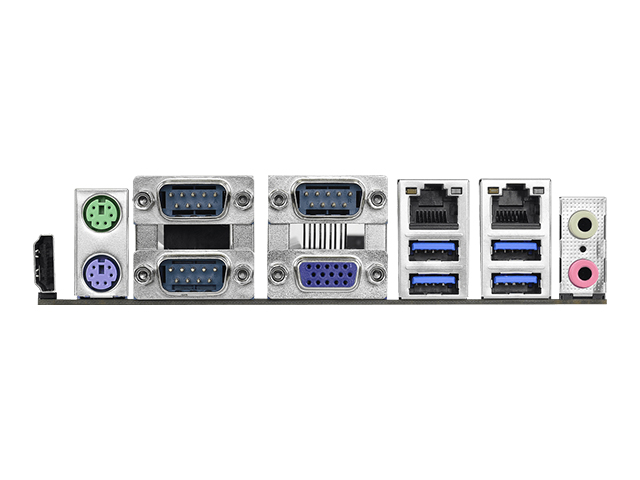

Rear I/O
VGA 1
HDMI 1
Ethernet2
USB:4 x USB 3.0
Audio 2 (Mic-in, Line-out)
Serial3 x RS-232 (COM1/COM2 support RS-422/485)
PS/2 PS2 x2, KB & MS stack
Internal Connector
USB4 ( 2*2.54 pitch header USB 2.0 compliant)
LVDS/Inverter1-Jan
VGA0
Serial3* 2.0 pitch header RS-232
SATA2 x SATA3 (6.0Gb/s)
m-SATA1(Share with SATA2)
Mini-PCIe1
Parallel1 (Co-lay with 8in/8out DIO)
IrDA0
GPIO8 x GPI + 8 x GPO
SATA PWR Output Con1
Speaker Header1
Watchdog Timer
OutputFrom Super I/O to drag RESETCON#
Interval256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR12V or 19~24V DC in (4-pin ATX PWR Con) / ATX
Power OnAT/ATX Supported
AT : Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power input ready
Environment
Operating Temperature0ºC – 60ºC
Graphics
ControllerIntel® Gen8 Intel Graphics DX 11*, OGL3.2
VRAMShared Memory
VGASupports max. resolution 1920 x 1200
LVDSDual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz
HDMISupports HDMI 1.4a, max resolution 1920x1200
DVINo
Display Port GraphicsNo
Multi Display GraphicsYes (Triple Display)
