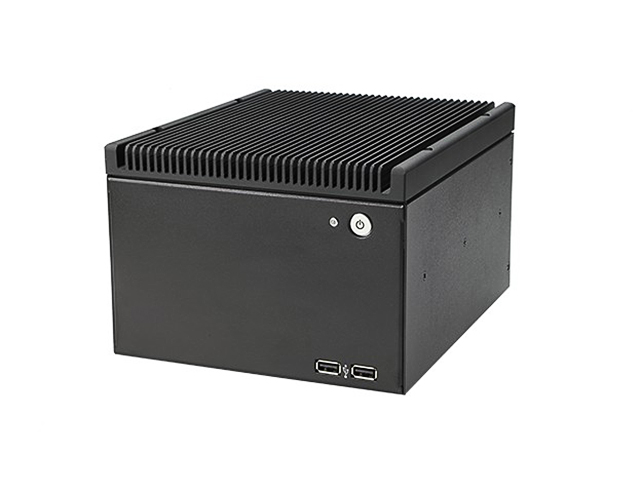

FS-BB1156-2
Fanless Bare Server System
  • Support 2 x Expansion Slot for PCI or PCI-E.
  • Simple assembling and Easy system integration.
  • Silent, dust-free & energy - efficient operation.



Product Introduction



Model NumberFS-BB1156-2
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2.5" HDD x 1.
Front Panelpower switch x 1.
Power LED x 1.
HDD LED x 1.
USB 2.0 Port x 2.
Back PanelCOM Ports x 6 .
PS/2 x 2 (1 x Keyboard , 1 x Mouse).
HDMI x 1. ANT x 2.
VGA x1. Gigabit LAN x 2.
Expansion slot for PCI or PCI-E x 2.
Audio IN / OUT. LPT x 1.
USB 3.0 Port x 4.
Material SGCC Anodized aluminum heatsink
External Adapter Input12V or 19 -24V DC In
SurfaceBlack wet paint with texture coat
Dimensions (WxHxD)7.00" x 4.90" x 8.20"
177.8 mm x 124.5 mm x 208.3 mm


Download
FAQ


There are no FAQ entries for this model.
Motherboard

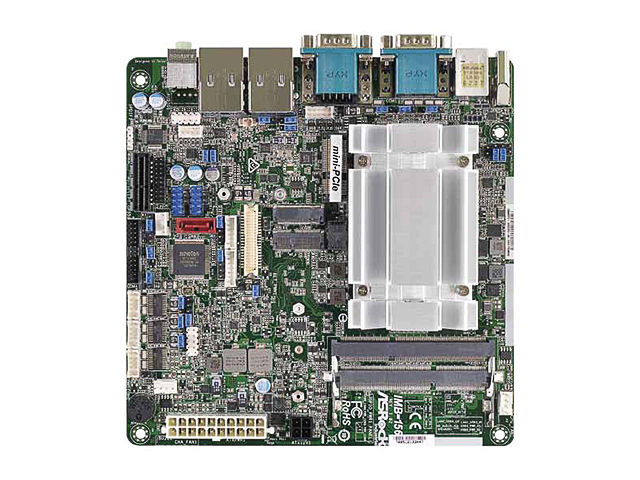

Motherboard Model NumberIMB-156
Processor System
CPUBGA1296 for Intel® Apollo Lake SoC
Core Number:(By CPU, Max 4)U
Max Speed:(By CPU)
L2 Cache (By CPU)
ChipsetN/A
BIOSUEFI
Expansion Slot
PCIe1 x PCIe x1 slot
Mini PCIe1 (full/half size) with PCIe x1 and USB 2.0 (Shared)
M.21 x KEY M (2260/2280) with SATA III signal for SSD
1 x KEY E (2230) with PCIe x1 and USB 2.0 (Shared) for Wireless
Memory
TechnologyDual Channel DDR3L 1867MHz
Max.16GB
Socket2 x SO-DIMM
Ethernet
Interface 10/100/1000 Mbps
Controller 2 x Realtek RTL8111G
Connector2 x RJ45
SATA
Max Data Transfer Ratek SATA3 (6.0Gb/s)

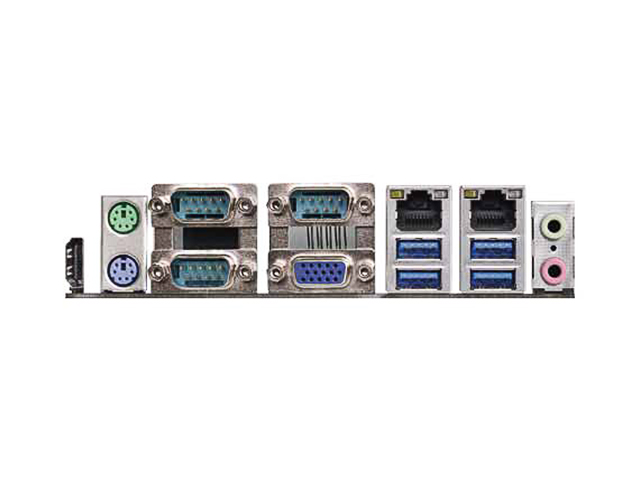

Rear I/O
VGA 1
HDMI 0
DVI-I/D1
Ethernet2
USB:4 x USB 3.0
Audio 2 (Mic-in, Line-out)
Serial3 x COM (Supports RS-232/422/485)
PS/2 2
Internal Connector
USB4 x USB 2.0 (2 x 2.54 pitch header)
LVDS/Inverter1-Jan
eDP1 (BOM Option)
VGA1
Serial3 x COM (Supports RS-232 only)
SATA1
m-SATA1
Mini-PCIe1 (shared with GPIO)
Parallel0
IrDA0
GPIO8 x GPI + 8 x GPO (shared with LPT header)
SATA PWR Output Con1
Speaker Header1
Watchdog Timer
OutputFrom Super I/O to drag RESETCON#
Interval256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR+12V or +19V~+24V DC-In (4-pin ATX PWR Con / ATX)
Power OnAT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Environment
Operating Temperature0ºC – 60ºC
Graphics
ControllerIntel® HD Graphics
VRAMShared Memory
VGASupports max resolution up to 1920 x 1200
LVDSSupports max resolution up to 1920 x 1200@60Hz
eDPSupports max resolution up to 4096 x 2160@60Hz
HDMISupports max resolution up to 4096 x 2160@24Hz
DVINo
Display Port GraphicsNo
Multi Display GraphicsYes (Triple Display)

Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
